Catalyst E And 4e

Name: Catalyst E and 4E: Catalyst E Wheel Locks - Attendant Lock
Manufacturer: Ki Mobility

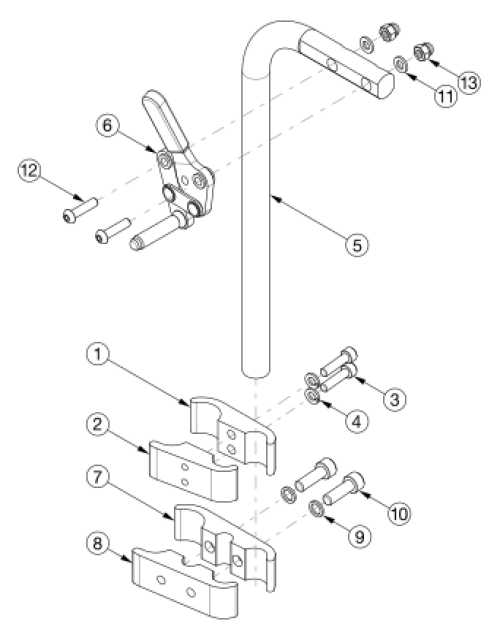

Catalyst E Wheel Locks - Attendant Lock parts diagram
(Click on image to enlarge)

Standard Clamps utilized with 20" wheels in combination with any Center of Gravity positions and 22" wheels in combination with Center of Gravity position 1. Extended Clamps utilized with 22" wheels in combination with Center of Gravity positions 2, 3, or 4 and with 24" wheels in combination with any Center of Gravity position.
Pos. Part # Description Price UOM Buy
1 - 4, 5a, 5b, 6a, 6b, 12 - 13 115840 Attendant Wheel Lock, Std Clamp
$158.44
EA
5a, 5b, 6a, 6b, 7 - 13 115841 Attendant Wheel Lock, Ext Clamp
$169.65
EA
1 - 4 115842 Std Clamp
$51.55
EA
7 - 10 115843 Extended Clamp
$62.77
EA
1 002831 Wheel Lock Clamp 1.125 to .75 C'Bored Long Clik- Standard Clamp
$10.59
EA
2 002832 Wheel Lock Clamp 1.125 to .75 Threaded Long Clik- Standard Clamp
$10.59
EA
3 100780 M6 x 25 SHCS ZC
$2.36
EA
4 101835 M6 Lock Washer Blk Zn
$0.60
EA
5a 112029 Attendant Wheel Lock Mount Bar, Right
$31.34
EA
5b 112030 Attendant Wheel Lock Mount Bar, Left
$31.34
EA
6a 200252 Wheel Lock Push Left
$39.60
EA
6b 200251 Wheel Lock Push Right
$39.60
EA
7 002814 Wheel Lock Clamp 1.125 to .75 C'Bored Extra Long Clik- Extended Clamp
$11.77
EA
8 002815 Wheel Lock Clamp 1.125 to .75 Threaded Extra Long Clik- Extended Clamp
$11.77
EA
9 101701 Washer 3.315/.350 x .425/.525 x .059/.067 18-8 F/W
$2.94
EA
10 102864 M8 x 25mm SHCS, BLK ZC
$1.77
11 100746 M6 Flat Washer Blk Zn
$1.77
EA
12 101593 M6 x 25 BTN SHCS BLKZC
$1.77
EA
13 100558 M6 NYL INS Domed Cap L/N ZC
$1.17
EA
