Focus Cr

Name: Focus CR: Focus Cr Seat Pan
Manufacturer: Ki Mobility

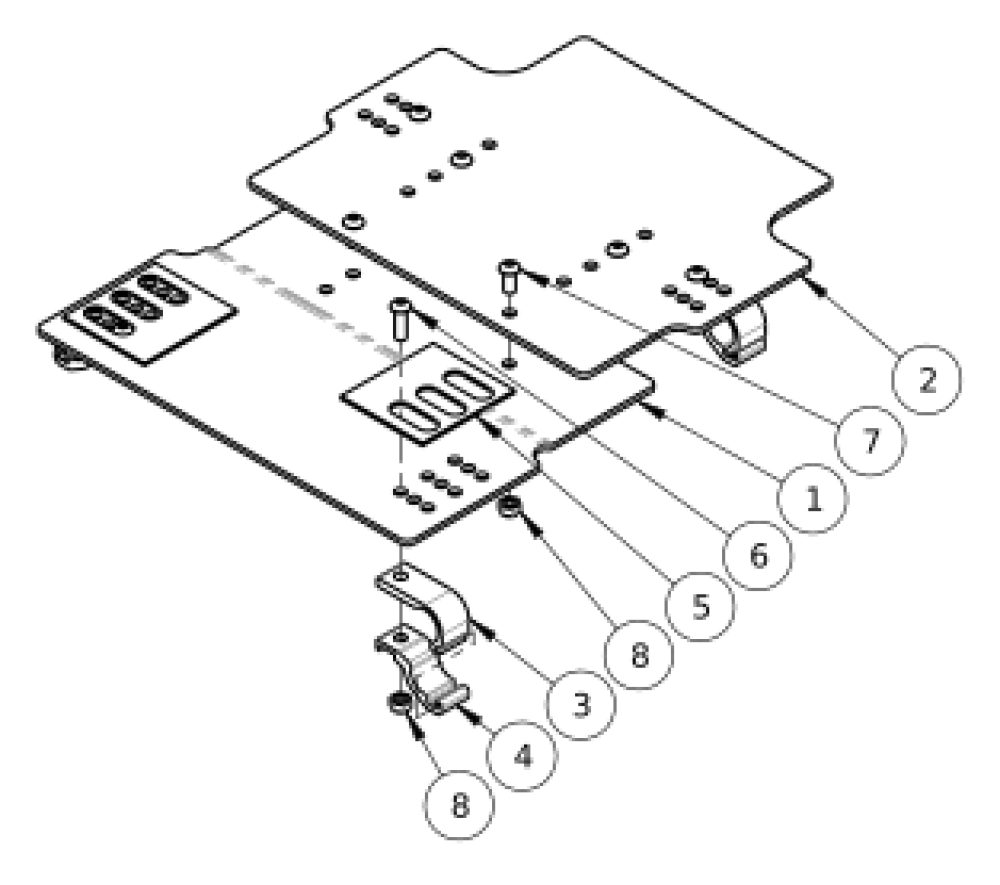

Focus Cr Seat Pan parts diagram
(Click on image to enlarge)

Grows two inches in width from even widths and one inch from odd widths. Max width is 24". Depth growth is matched to frame depth range and can be adjusted to any depth in the range.
Attachments:
Pos. Part # Description Price UOM Buy
1a, 2a, 3 - 8 501144 Seat Pan Assembly Short 14-16" Wide TILT
$459.00
EA
1b, 2b, 3 - 8 501145 Seat Pan Assembly Short 16-18" Wide TILT
$459.00
EA
1c, 2c, 3 - 8 501146 Seat Pan Assembly Short 18-20" Wide TILT
$459.00
EA
1d, 2d, 3 - 8 501147 Seat Pan Assembly Short 20-22" Wide TILT
$459.00
EA
1e, 2e, 3 - 8 501218 Seat Pan Assembly Short 22" Wide TILT
$775.33
EA
1f, 2a, 3 - 8 501148 Seat Pan Assembly Medium 14-16" Wide TILT
$459.00
EA
1g, 2b, 3 - 8 501149 Seat Pan Assembly Medium 16-18" Wide TILT
$459.00
EA
1h, 2c, 3 - 8 501150 Seat Pan Assembly Medium 18-20" Wide TILT
$459.00
EA
1i, 2d, 3 - 8 501151 Seat Pan Assembly Medium 20-22" Wide TILT
$459.00
EA
1j, 2e, 3 - 8 501219 Seat Pan Assembly Medium 22" Wide TILT
$775.33
EA
1k, 2a, 3 - 8 501152 Seat Pan Assembly Long 14-16" Wide TILT
$459.00
EA
1l, 2b, 3 - 8 501153 Seat Pan Assembly Long 16-18" Wide TILT
$459.00
EA
1m, 2c, 3 - 8 501154 Seat Pan Assembly Long 18-20" Wide TILT
$459.00
EA
1n, 2d, 3 - 8 501155 Seat Pan Assembly Long 20-22" Wide TILT
$459.00
EA
1o, 2e, 3 - 8 501220 Seat Pan Assembly Long 22-24" Wide TILT
$775.33
EA
1a 001184 Seat Pan Front Short 14-16" Wide TILT
$218.49
EA
1b 001185 Seat Pan Front Short 16-18" Wide TILT
$218.49
EA
1c 001186 Seat Pan Front Short 18-20" Wide TILT
$218.49
EA
1d 001187 Seat Pan Front Short 20-22" Wide TILT
$218.49
EA
1e 001188 Seat Pan Front Short 22" Wide TILT
$218.49
EA
1f 001189 Seat Pan Front Medium 14-16" Wide TILT
$218.49
EA
1g 001190 Seat Pan Front Medium 16-18" Wide TILT
$218.49
EA
1h 001191 Seat Pan Front Medium 18-20" Wide TILT
$218.49
EA
1i 001192 Seat Pan Front Medium 20-22" Wide TILT
$218.49
EA
1j 001193 Seat Pan Front Medium 22" Wide TILT
$218.49
EA
1k 001194 Seat Pan Front Long 14-16" Wide TILT
$218.49
EA
1l 001195 Seat Pan Front Long 16-18" Wide TILT
$218.49
EA
1m 001196 Seat Pan Front Long 18-20" Wide TILT
$218.49
EA
1n 001197 Seat Pan Front Long 20-22" Wide TILT
$218.49
EA
1o 001198 Seat Pan Front Long 22-24" Wide TILT
$218.49
EA
2a 001199 Seat Pan Rear 14-16" Wide TILT
$218.49
EA
2b 001200 Seat Pan Rear 16-18" Wide TILT
$218.49
EA
2c 001201 Seat Pan Rear 18-20" Wide TILT
$218.49
EA
2d 001202 Seat Pan Rear 20-22" Wide TILT
$218.49
EA
2e 001203 Seat Pan Rear 22-24" Wide TILT
$218.49
EA
3 001204 Seat Pan/Base Bracket TILT
$39.02
4 001205 Seat Pan/Base Clamp TILT
$40.29
5 001206 AB Tape 3x3 Die Cut Tilt
$2.83
6 101814 M8 x 25 BHCS Blk Zn
$1.17
EA
7 101813 M8 x 18 BHCS Blk Zn
$2.36
8 100659 M8 Nylock Nut Blk Zn
$1.17
EA
