EasyStand Evolv XT (Tall) Standing Frame
Part Number: PNG50209-1
Retail Price:
Configure & BUY
The revolutionary EasyStand Evolv stander is now available for individuals from 6'0" - 6'10" and up to 350 lbs. With a focus on positioning, modularity, and accessibility, the Evolv XT meets and exceeds the need to stand heavier, taller individuals.
EasyStand Evolv XT comes standard with the Powr Up Lift and is available with numerous options, including the Mobile and Shadow Tray...
Features:
- Includes Tray, Knees Support, and Seating
Description
The revolutionary EasyStand Evolv stander is now available for individuals from 6'0" - 6'10" and up to 350 lbs. With a focus on positioning, modularity, and accessibility, the Evolv XT meets and exceeds the need to stand heavier, taller individuals.
EasyStand Evolv XT comes standard with the Powr Up Lift and is available with numerous options, including the Mobile and Shadow Tray.
At this time the Evolv XT is not available with a Glider option.
Precise Positioning
As the leader in sit to stand standing, Altimate Medical has perfected the optimum standing position in the new EasyStand Evolv. Precise user positioning was achieved by relocating the pivot points of the stander to mimic the body's natural pivot points, minimizing shear and maximizing function.
When positioned correctly in the EasyStand Evolv, it provides a maximum over-center stretch and the shear is virtually zero in the buttocks and back. Additional supports (hip supports, lateral supports, head support) remain in place from sitting to standing. It provides a maximum over-center stretch for various body types.
Modularity
The EasyStand Evolv is the most modular stander to date; allowing over 30 options and configurations such as the Shadow Support Tray to be added at any time.
Accessibility
The base of the Evolv has open rear legs and a center frame that provides accessibility for users who transfer with a patient lift. The open base and wider seat also allow for easier independent transfers.
Convenience
The EasyStand Evolv allows the user to be standing in three easy steps (transfer, adjust, and pump up). Other more complex standers have straps lift the seat instead of a direct lift, forcing the user to complete nine steps before standing.
Comfortable
The upholstery on the EasyStand Evolv is made of soft black Dartex. The multi-direction stretch in the kneepad and seat provide a more natural fit with your body. The seat is contoured to provide a comfortable and precise standing position.
Minimal Maintenance
Like all EasyStand products, the Evolv is low maintenance. There are no gears or straps to worry about. The Evolv is easy to use and easy to assemble. Plus, it is backed up by a solid warranty and great customer service.
Basic Evolve XT Standing Frame Includes:
- Casters
- Pow'r Up Lift
- Contoured seat
- Flip-up kneepad
- Adjustable footplates
- Clear tray with front pad
- Arm rests
- Black Dartex upholstery
You can select from a wide variety of options and accessories to meet your specific needs.

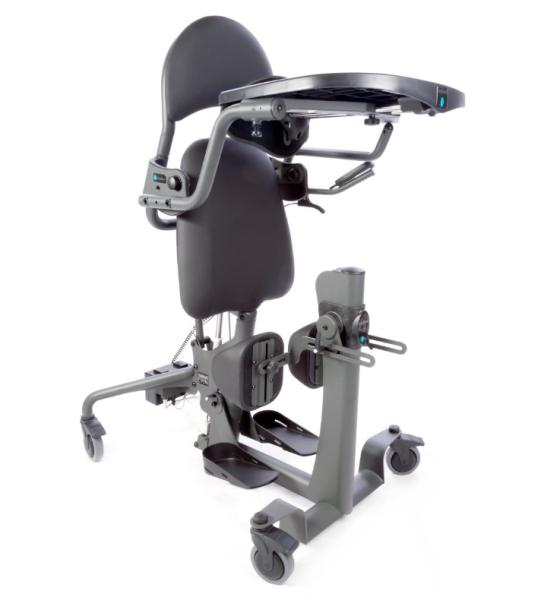

Basic Evolv Standing Frame | Evlov with optional Shadow Tray and Low Contoured Back. |
Frequently Asked Evolv Stander Questions:
What kind of back comes on the Evolv Stander?
There is no back standard on the EasyStand Evolv, You must choose a back style from the order form.
Do casters come standard with the EasyStand Evolv XT?
Yes. 4 locking casters come standard with th Evolv. Now Casters also come standard with the 5000 Youth, 5000, and Magician products.
If I order the EasyStand Evolv now, can I add options later?
Yes! Options can be added to the EasyStand Evolv XT at anytime, allowing you the choice to upgrade your stander. Such as the Shadow Support Tray.
Who fits in the EasyStand Evolv XT?
The Large EasyStand Evolv fits people from approximately 6'0"-6'11" and up to 350 lbs. See the specifications for more information.
Can a person transfer into the EasyStand Evolv with a Hoyer-type Lift?
Yes, the EasyStand Evolv works well with various types of patient lifts, including a Hoyer-type lift. The open frame allows a lift to be positioned under the back legs of the frame.
How is the EasyStand Evolv different from the EasyStand 5000?
It is different in many ways. First of all, it is more modular then the 5000, allowing options such as the Shadow Tray option to be added at anytime, instead of purchasing a different piece of equipment. The Evolv also has an open base instead of a square base, giving more access for patient lifts and transfers. Another key difference is in the lifting design. Precise user positioning was achieved by relocating pivot points of the stander to mimic the body's natural hip and knee pivot points, minimizing shear and maximizing function. There are many other great design changes, these are just a few of the key improvements.
Features
- Includes Tray, Knees Support, and Seating
Specifications
Approximate Height Range | 6'0"-6'10” |
Weight Limit | 350lbs |
Maximum Mass (fully loaded unit) | 170lbs |
Seat Depth Range (from seat pivot) | 20”-25” |
Seat to Footplate Range (from seat pivot) | 17”-23” |
Kneepad Depth Range (from seat pivot) | 4.75”-7” |
Seat Height | 23.5” |
Seat Dimensions | 19"Wx21.5"L |
Standard Tray Size | 21”x24” |
Tray/Chest Pad Depth Range (from seat pivot) | 0”-10.5” |
Standard Tray Height Range (from seat pivot) | 15.5”-30.5” |
Footprint (at widest points) | 29.5”x37.5” |
Weight of Basic Unit | 112lbs |
Frame Color | Charcoal |
Standard Upholstery Color | Black |
Locking Caster Diameter | 5" |
Footplates-Plantar | 10° in 3 increments |
Footplates-Dorsi | 10° in 3 increments |
Footplates- Toe-out | 15 degrees in 3 increments |
Shadow Tray | |
Shadow Tray 12" Height from seat (acrylic tray is 1" shorter) | 12.25" |
Weight of Evolv w/Shadow | 115lbs |
Shadow Tray Size | 21”x24” |
Mobile | |
Weight of Mobile Option | 38lbs |
Weight of Evolv Mobile (all sizes) | 135lbs |
Footprint (including pushrims) | 28.5"x36" |
Wheelbase | 29.75" |
Pushrim Height (from floor) | 45" |
Wheel Locks | 1/4 turn rotation to lock/unlock |
Drive Chain Tensioning Method | Self -Tensioning Gravity Operated |
Mobile Tray Size | 18"Wx19"L |
Options | |
Front Swivel Casters | Add 5" W to Footprint |
Adjustable/Removable Actuator Handle Range | +/- 15° from neutral |
T-Style Handle-Extends (each direction) | 6” |
Foot straps- Fits foot height | 4"-6.5" |
Secure Foot Straps-Fits foot height | 4”-6.5” |
Seat – Size of Roho® Insert | 12”x12” |
Transfer Seat Dimensions | 23"Wx 21.5"L |
Hip Supports-Medium Width | 10"-15" |
Hip Supports-Large Width | 12"-17" |
Hip Supports Pad Size | 4"Wx6"H |
Independent Kneepad Height Range (from seat pivot) | +5" to -5.25" |
Independent Kneepad Depth Range (from front of seat) | 1"-7.5" |
Independent Kneepad Width Range (center to center) | 9”-13.5” |
Independent Kneepad Size | 7"Wx9"H |
Independent Kneepad Roho Insert Size | 5"Wx7.5"H |
Clear Acrylic Tray Size | 21”x24” |
Oversized Clear Tray Size | 29"x22" |
Angle Adjustable Tray (Angle range) | 0-35° |
Large Contoured Chest Pad (Approximate size) | 9.5”x15” |
Low Back (Flat/Contoured) Height from Seat | 13” |
High Back (Flat/Contoured) Height from Seat | 19” |
Velcro Positioning Belt (Hip Circumference) | 26”-55” |
Positioning Belt w/ Airline Buckle (Hip Circumference) | 26”-55” |
Small Chest Strap-Pad Size | 5"Wx19"L |
Small Chest Strap-fits users chest measuring | 30"-46" |
Large Chest Strap-Pad size | 5"Wx24"L |
Large Chest Strap-fits users chest measuring | 34"-54" |
X-Style Chest Vest-Medium | 11”Lx9.5"W |
X-Style Chest Vest-Large | 12.5”Lx10”W |
Y-Style Chest Vest-Medium | 17.5”Lx11.5”W |
Y-Style Chest Vest-Large | 20.5”Lx12.5"W |
High Mount Chest Vest Bracket Positions | 18", 19", 20", 21" H (above hip Pivot) |
Lateral Supports-Medium Width Range | 8”-16.5” |
Lateral Supports-Large Width Range | 11"-19.5" |
Lateral Supports-Fore/Aft Pad Adjustment | 3" |
Lateral Supports-Height Adjustment by swapping brakets left/right | 2" |
Lateral Supports-Height Adjustment via mounting bolts on the pads | 2" |
Lateral Supports-Height Range of lateral pad from hip pivot | 4" |
Lateral Supports-Rotational setting of lateral pad via bolt mounting holes | 90, 180, 270, or 360° position |
Lateral Support Pad Size | 4"Wx6"H |
Head Support-Medium Height Range (from top of the seat to middle of headrest) | 21”-30.5” |
Head Support-Large Height Range (from top of the seat to middle of headrest) | 24”-33.5” |
Head Support-Depth Range | 3.75" |
Head Support-Fore/Aft Adjustment in relation to back pad | Flush with back aft to 3-3/4 |
Parts
- Easystand Accessory
Hook and Loop and d-ring adjustment hold feet into alignment with multiple attachment slots on footplates for proper foot positioning. Straps(Pair)fit foot height 4"-6.5" (10-17cm). 15" long...
- Fits Evolv Standing Frames
- Evolv Medium - 9" - 15"
- Evolv Large - 10" - 15"
- Large 9.5" x 15"
Provides a 13" (33cm) back for lower trunk stability.
Provides a 19" (48cm) back for upper trunk stability.
Provides a 13" (33cm) contoured back for lower trunk stability and minimal built-in posterior lateral support.
Easystand Evolv standing frame contoured backrest provides 19" (48cm) of contour for upper trunk stability and minimal built-in posterior lateral support.
Hook and Loop and d-ring adjustment provides hip stability for user. Fits hip circumference of 26"-55"(66-140cm). Back required.
Provides hip stability with the security and convenience of an airline style buckle. Fits hip circumference of 26"-55" (66-140cm). Back required.
Hook and Loop and d-ring adjustment provides moderate upper trunk support. Pad size is 5"W X 19"L (13cm W X 48 cm L); fits users with chest measurement ranging from 30"-46" (76-117cm)...
Hook and Loop and d-ring adjustment provides moderate upper trunk support. Chest strap pad is 5"Wx24"L (13cm Wx61cm L); fits users with chest measurement ranging from 34"-50" (86-137cm)...
