Raz Design RAZ-AT600 Heavy Duty Tilt Rehab Shower Commode Chair

Manufacturer: RAZ Design
Part Number: RAZ-AT600
Retail Price: ~~$5,995.00~~

Price: $5,527 Ea
Configure & BUY

FREE Shipping

The AT600 Stainless Steel shower commode chair is a heavy duty bariatric version of the popular AT shower commode chair by RAZ Design.

The specially engineered, Weight Assist Spring System (WASS) is available in two weight ranges and is adjustable to accommodate the users weight and Center of Mass (CoM) for tilt operation with minimal effort by the attendant...

Features:

Weight Assist Spring System (WASS)

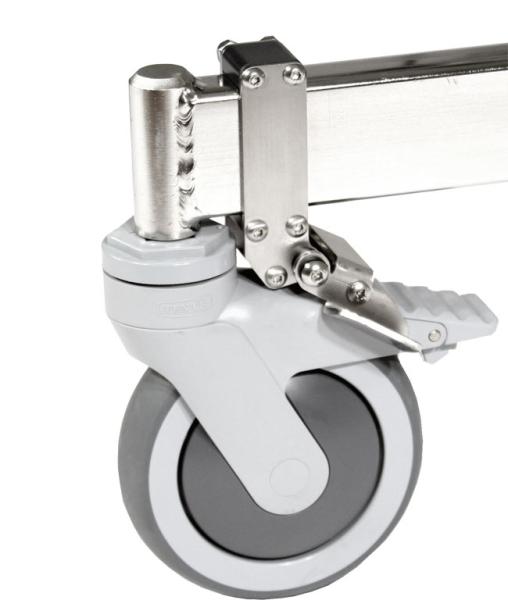

Four dual-locking 5" casters

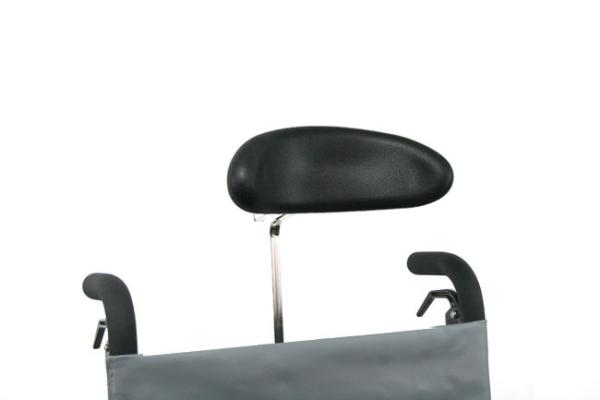

Headrest w/ Headrest Fixture
Commode Pan
25° Tilt Range
HD Footrests

$5,527.00 Quantity: Add to Cart

Tilt Function:	Pressurized Locking Gas Spring with Weight Assist Spring System (WASS) up to 25° tilt range
WASS Weight Range:	275 to 450 lbs. (125 to 205 kg) / 400 to 600 lbs. (180 to 272 kg)
Frame Width:	22" (56cm)
Seat Width:	23" (58 cm)
Overall Width:	+ 2.75" (7 cm) Frame Width
Seat Depth:	18" (46cm)
Seat Adjustment:	Fore/Aft: Up to 2" (5 cm) / Lateral: up to 3/4" (2 cm)
Back Position (C.O.G.)	Fore/Aft: 2" (5 cm)
Seat Height	22.5" - 23.5" (57 - 60 cm)
Toilet Bowl Clearance Under Frame:	18.25" / 19.25" (46 / 49 cm)
Toilet Bowl Clearance Under Commode Pan Brackets:	18" / 19" (46 / 48 cm)
Toilet Bowl Clearance Width:	- 5" (12.7 cm) Frame Width
Back Height:	21" (53 cm)
Back Angle:	Adjustable: 90° or 97°
Armrest Height:	Adjustable: 9" - 10" (23- 25 cm)
Distance Between Armpads:	+ 0.75" (2 cm) Frame Width
Lateral Support Offset:	0 - 2.25" (0 - 5.7 cm)
Lateral Support Trunk Width:	- 0 to 4.5" (less 0 - 11.4 cm) Frame Width
Lateral Support Vertical Adjustment Range:	2.5" (5 cm)
Lateral Support Fore/Aft Adjustment Range:	1" (2.5 cm)
Lateral Support Pad Angle:	+/- 5°
Standard Footrest Adjustment:	16" - 20.5" (41 - 52 cm)
Standard Footrest w/ Z7FREXT Adjustment:	18" - 22.5" (46 - 57 cm)
Caster Type / Size:	Dual - Locking 6" (15 cm)
Overall Length When Upright w/ Footrests:	42" - 43" (106 - 109 cm)
Overall Length When Upright w/o Footrests:	32.5" (82 cm)
Overall Length When Tilted w/ Footrests:	47" - 55" (119 - 140 cm)
Overall Length When Tilted w/o Footrests:	35" - 43" (89 - 109 cm)
Weight:	85 lbs. (39 kg)
Frame / Hardware Material:	Stainless Steel (Lifetime warranty against corrosion)
