Catalyst 5
Name: Catalyst 5: Catalyst Stroller Handle Back Post With Removable Stroller Handle Extension (depth Adjustable)
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

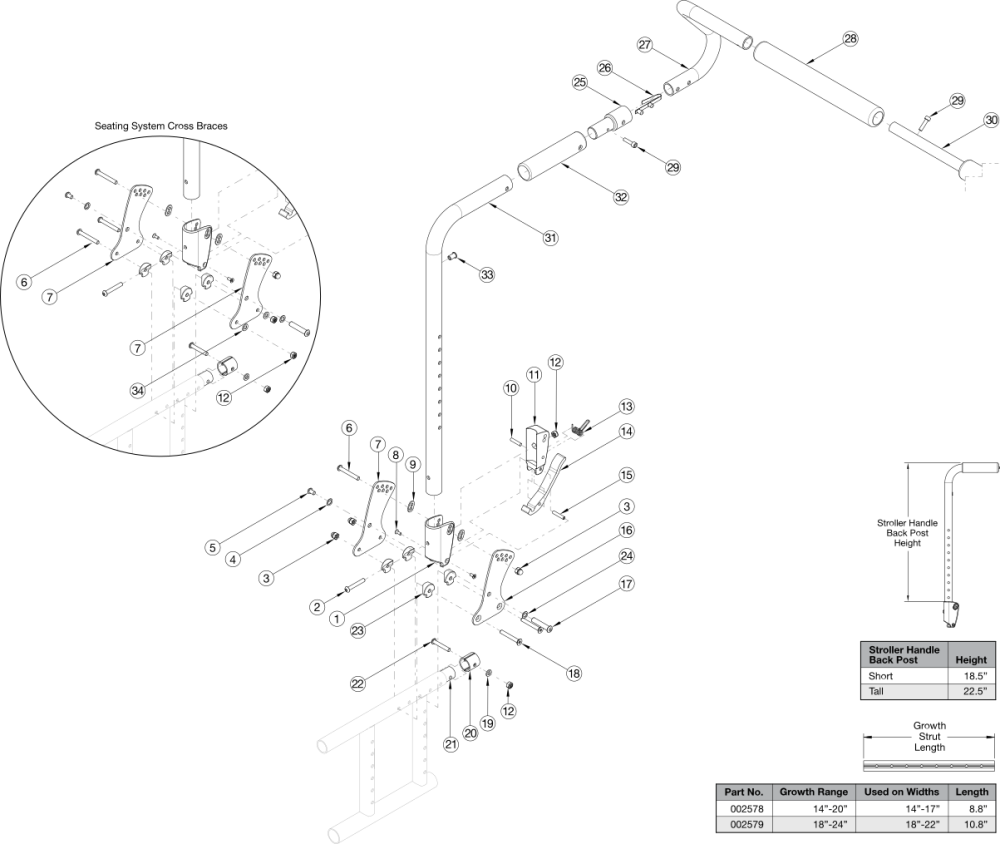

Part Picture
(Click on image to enlarge)
This backrest style and removable stroller handle extension was released February 8th, 2021
If changing from another style backrest and the Drum Brake is present, a new Drum Brake Cable Kit may be required
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 25, 26, 27a, 27b, 28, 29, 30a, 31a, 32, 33 | 112640 | Stroller Handle Back Post, Short, with Removable Stroller Handle Extension Assembly, 14-17" Wide, Catalyst/Spark, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$315.90
|
EA |
|
| 25, 26, 27a, 27b, 28, 29, 30a, 31b, 32, 33 | 112641 | Stroller Handle Back Post, Tall, with Removable Stroller Handle Extension Assembly, 14-17" Wide, Catalyst/Spark, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$315.90
|
EA |
|
| 25, 26, 27a, 27b, 28, 29, 30b, 31a, 32, 33 | 112642 | Stroller Handle Back Post, Short, with Removable Stroller Handle Extension Assembly, 18-22" Wide, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$318.60
|
EA |
|
| 25, 26, 27a, 27b, 28, 29, 30b, 31b, 32, 33 | 112643 | Stroller Handle Back Post, Tall, with Removable Stroller Handle Extension Assembly, 18-22" Wide, PAIR- This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. | This kit does not contain any backrest hardware. For a complete retrofit, select this kit and the desired Depth Adjustable Backrest Hardware Assembly. If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake. |
$318.60
|
EA |
|
| 25, 26, 27a, 27b, 28, 29, 30a | 112644 | Removable Stroller Handle Extension Assembly, 14" - 17" Wide, Catalyst/Spark, PAIR- This kit does not contain back posts or backrest hardware | This kit does not contain back posts or backrest hardware |
$210.42
|
EA |
|
| 25, 26, 27a, 27b, 28, 29, 30b | 112645 | Removable Stroller Handle Extension Assembly, 18" - 22" Wide, PAIR- This kit does not contain back posts or backrest hardware | This kit does not contain back posts or backrest hardware |
$213.11
|
EA |
|
| 31a, 32, 33 | 112646 | Stroller Handle Back Post for Removable Stroller Handle Extension, Short- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake |
$52.74
|
EA |
|
| 31b, 32, 33 | 112647 | Stroller Handle Back Post for Removable Stroller Handle Extension, Tall- If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake | If chair was invoiced with backrest code 50BOP032, new backcanes are not required to retrofit the drum brake. If chair was invoiced with backrest code 50BOP010, a complete backrest retrofit to this Depth Adjustable Back design is required in order to retrofit the drum brake |
$52.74
|
EA |
|
| 1 - 15, 16a, 17 - 20, 22 - 24 | 112603 | Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Left Side |
$149.55
|
EA |
|
|
| 1 - 15, 16b, 17 - 20, 22 - 24 | 112604 | Depth Adjustable Backrest Hardware Assembly, for Std Cross Braces, Right Side |
$149.55
|
EA |
|
|
| 1 - 15, 17 - 20, 22, 23, 34 | 112605 | Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, One Side |
$154.85
|
EA |
|
|
| 1 - 15, 17 - 20, 22, 23, 34 | 112606 | Depth Adjustable Backrest Hardware Assembly, for Seating Cross Braces, PAIR |
$309.67
|
EA |
|
|
| 1, 9 | 503834 | Cover Plate, Latch Insert Kit |
$28.36
|
EA |
|
|
| 2 | 100797 | M6 x 40 BHCS BLK ZC |
$1.17
|
EA |
|
|
| 3 | 100558 | M6 NYL INS Domed Cap L/N ZC |
$1.17
|
EA |
|
|
| 4 | 101701 | Washer 3.315/.350 x .425/.525 x .059/.067 18-8 F/W |
$2.94
|
EA |
|
|
| 5 | 101184 | M6 x 10 BTN SHCS BLKZC w/Patch |
$1.77
|
EA |
|
|
| 6 | 100670 | M6 x 45 BTN SHCS BLK ZC |
$1.77
|
EA |
|
|
| 7 | 111833 | Depth Adjustable Back Plate, Folding- Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present. | Use quantity 1 per side if standard cross braces are present. Use quantity 2 per side if seating system cross braces are present. |
$25.98
|
EA |
|
| 8 | 101818 | M4 x 10 FHCS BLKZC w/Patch |
$1.17
|
EA |
|
|
| 9 | 001897 | Washer, Dual, PSA |
$2.34
|
EA |
|
|
| 10 | 102694 | Dowel Pin, M5 X 24, Blk Zn |
$1.77
|
EA |
|
|
| 11 | 001895 | Latch Insert, Folding Backrest |
$7.39
|
EA |
|
|
| 12 | 100658 | M6 Nylock Nut Blk Zn- Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present. | Use quantity 2 per side if standard cross braces are present. Use quantity 4 per side if seating system cross braces are present. |
$1.17
|
EA |
|
| 13 | 001896 | Spring, Backrest Latch |
$0.60
|
EA |
|
|
| 14 | 001893 | Latch Lever, Backrest |
$14.94
|
EA |
|
|
| 15 | 002513 | Threaded Barrel, 5mm OD x M4 |
$2.17
|
EA |
|
|
| 16a | 111835 | Depth Adjustable Back Plate, Inner, Folding, Left- Only used when standard cross braces are present | Only used when standard cross braces are present |
$25.98
|
EA |
|
| 16b | 111834 | Depth Adjustable Back Plate, Inner, Folding, Right- Only used when standard cross braces are present | Only used when standard cross braces are present |
$25.98
|
EA |
|
| 17 | 003284 | Binding Post, 8mm x 40mm x M6 |
$1.64
|
EA |
|
|
| 18 | 101592 | M6 x 45 CLS10.9 DIN7991 FHCS BLKZC |
$2.94
|
EA |
|
|
| 19 | 100746 | M6 Flat Washer Blk Zn |
$1.77
|
EA |
|
|
| 20 | 114443 | Tube Spacer, Black, 1" OD x .083" x .80 LG- Replacement for part number 001230 | Replacement for part number 001230 |
$3.78
|
EA |
|
| 21 | 000605 | Depth Adjustable Frame Extension Tube, Catalyst/Spark |
$41.58
|
EA |
|
|
| 22 | 101811 | M6 x 35 BHCS Blk Zn |
$1.17
|
EA |
|
|
| 23 | 000612 | 1" Half Saddle Washer |
$2.15
|
|
||
| 24 | 101861 | Nylon Washer 5/16 x 1/2 x .03- Only used when standard cross braces are present | Only used when standard cross braces are present |
$0.60
|
EA |
|
| 25 | 001243 | Stroller Handle Adaptor |
$36.24
|
EA |
|
|
| 26 | 100533 | Detent Button |
$4.02
|
EA |
|
|
| 27a, 28 | 501091 | Stroller Handle with Foam Grip, Left |
$57.28
|
EA |
|
|
| 27b, 28 | 501090 | Stroller Handle with Foam Grip, Right |
$57.28
|
EA |
|
|
| 29 | 101843 | M5 x 20 SHCS Blk Zn |
$0.60
|
EA |
|
|
| 30a | 002578 | Growth Strut, Stroller, Short- Used on chair widths 14-17" Wide | Used on chair widths 14-17" Wide |
$28.79
|
EA |
|
| 30b | 002579 | Growth Strut, Stroller, Long- Used on chair widths 18-22" Wide | Used on chair widths 18-22" Wide |
$31.51
|
EA |
|
| 34 | 102803 | Washer Flat .250 x .500 x .027 HX BLZ- Only used when seating system cross braces are present | Only used when seating system cross braces are present |
$1.77
|
EA |
|
