Liberty Replacement Parts by Ki Mobility

Name: Liberty: Liberty Seat Frame
Manufacturer: Ki Mobility

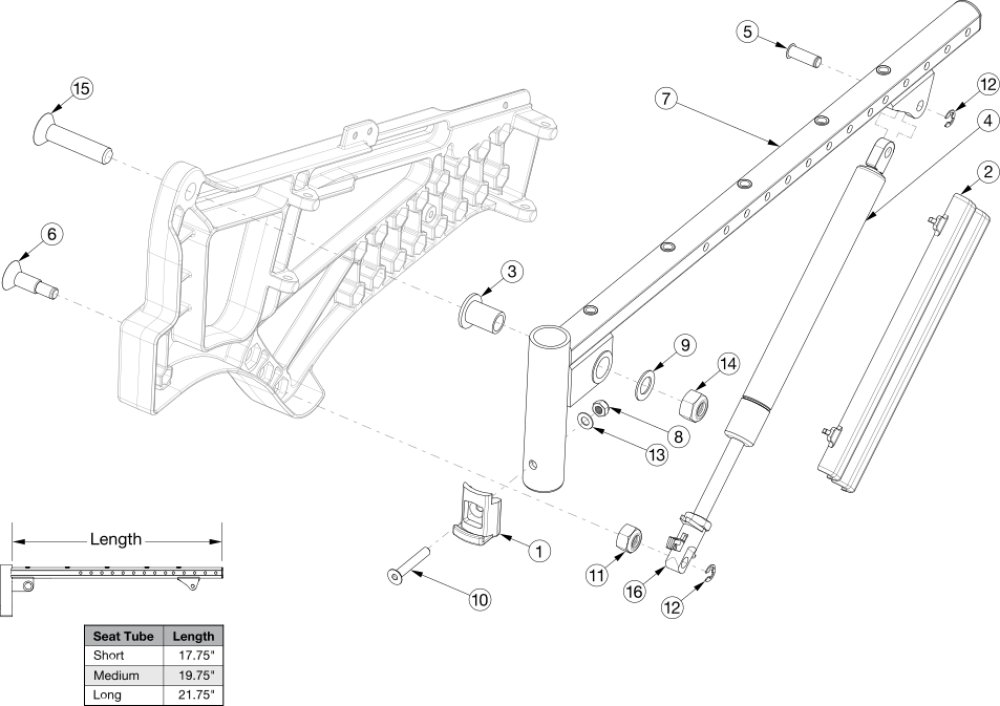

(Click on image to enlarge)

If you are changing the depth of your chair, please see the Liberty Tilt Mechanism parts manual page to evaluate if a new tilt cable is necessary.

Attachments:

Pos.	Part #	Description	Remarks	Price	UOM
2, 4b, 5, 6, 11, 12, 16	506149	Gas Spring Kit, 300N, Liberty		$176.99	EA
2, 4a, 5, 6, 11, 12, 16	506150	Gas Spring Kit, 450N, Liberty		$176.99	EA
3, 7a, 9, 14, 15	506146	Seat Tube Assembly, Short, Liberty		$112.65	EA
3, 7b, 9, 14, 15	506147	Seat Tube Assembly, Medium, Liberty		$118.66	EA
3, 7c, 9, 14, 15	506148	Seat Tube Assembly, Long, Liberty- Updated to longer clevis on seat tube 10/21/2020. Not compatible with Transit Wheels.	Updated to longer clevis on seat tube 10/21/2020. Not compatible with Transit Wheels.	$195.70	EA
1	000336	Latch Block		$42.84	EA
2, 4a, 16	506508	Gas Spring, 95mm Stroke, 450N with Cover, Liberty- Used on Depths 18" and Greater (Default Setting)	Used on Depths 18" and Greater (Default Setting)	$170.34	EA
2, 4b, 16	506509	Gas Spring, 95mm Stroke, 300N with Cover, Liberty- Used on Depths Less than 18" (Default Setting)	Used on Depths Less than 18" (Default Setting)	$170.34	EA
3	003278	Pivot Bushing		$3.51	EA
5	003282	Clevis Pin, 8mm x .830Lg		$1.21	EA
6	003283	Gas Spring Mount Screw		$1.84	EA
8	100658	M6 Nylock Nut Blk Zn		$1.19	EA
9	100682	Washer 1/2" .518 x .875 x .047 F/W Black Zinc		$1.19	EA
10	101819	M6 x 40 FHCS Blk Zn		$1.19	EA
11	101840	M10 Nylock Nut Blk Zn		$1.19	EA
12	102335	E-Ring 5/16" SS		$1.19	EA
13	102803	Washer Flat .250 X .500 X .027 Hx Blz		$1.81	EA
14	103021	M12 X 1.75mm Nylock Nut Blk Zn		$1.19	EA
15	103031	M12 x 55 FHCS, 10.9, Blk Zn		$4.79	EA
16	111877	Gas Strut Lug, Liberty- Includes replacement instructions	Includes replacement instructions	$25.62	EA
