Name: Rogue2: Rogue2 Footrest - Aluminum Angle Adjustable
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

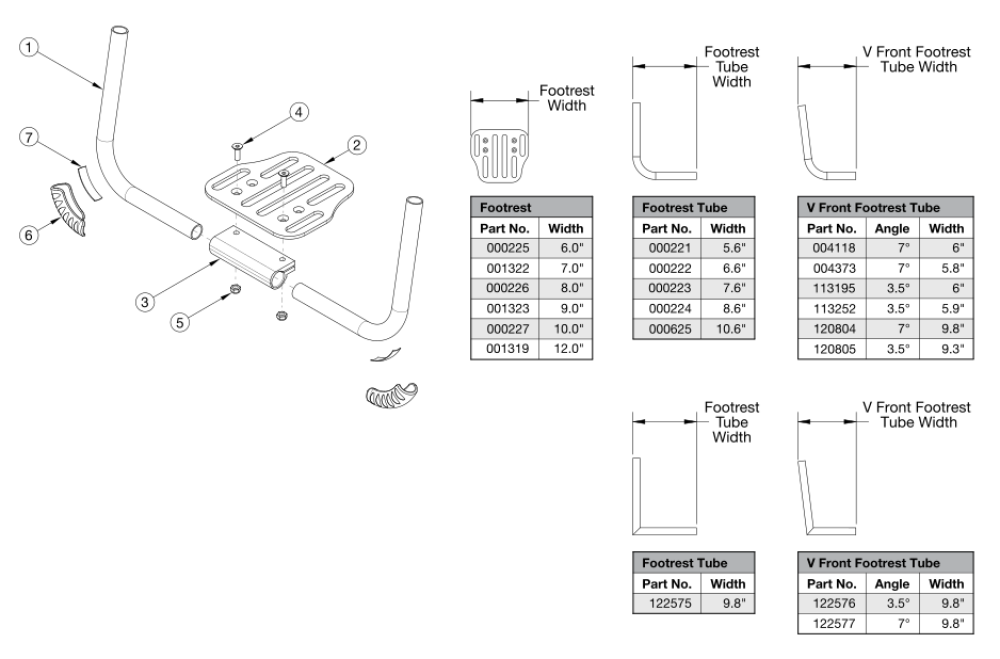

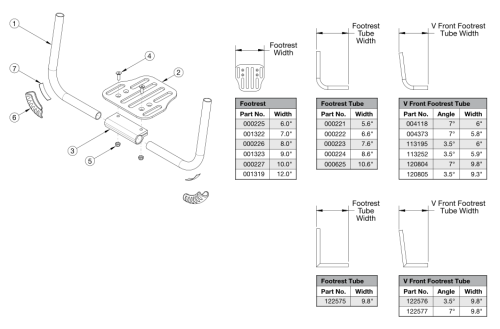

Part Picture
(Click on image to enlarge)
Footplate Length Measuring Guide | Rogue2 V-Front Footrest Tube Matrix
If changing from a high mount footrest to a frame inserted footrest, please see the "Rogue2 Rigid Frame" page for necessary hardware.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1a, 2b, 3 - 5 | 117520 | Angle Adjustable Footrest Assembly 12" wide, Rogue2- Used on 12" wide with 0" taper, 14" wide with 1" taper, or 16" wide with 2" taper | Used on 12" wide with 0" taper, 14" wide with 1" taper, or 16" wide with 2" taper |
$170.75
|
EA |
|
| 1a, 2c, 3 - 5 | 117521 | Angle Adjustable Footrest Assembly 13" wide, Rogue2- Used on 13" wide with 0" taper, 15" wide with 1" taper, or 17" wide with 2" taper | Used on 13" wide with 0" taper, 15" wide with 1" taper, or 17" wide with 2" taper |
$192.96
|
EA |
|
| 1b, 2d, 3 - 5 | 117522 | Angle Adjustable Footrest Assembly 14" wide, Rogue2- Used on 14" wide with 0" taper, 16" wide with 1" taper, or 18" wide with 2" taper | Used on 14" wide with 0" taper, 16" wide with 1" taper, or 18" wide with 2" taper |
$170.75
|
EA |
|
| 1b, 2e, 3 - 5 | 117523 | Angle Adjustable Footrest Assembly 15" wide, Rogue2- Used on 15" wide with 0" taper, 17" wide with 1" taper, or 19" wide with 2" taper | Used on 15" wide with 0" taper, 17" wide with 1" taper, or 19" wide with 2" taper |
$201.13
|
EA |
|
| 1c, 2e, 3 - 5 | 117524 | Angle Adjustable Footrest Assembly 16-17" wide, Rogue2- Used on 16-17" wide with 0" taper, 18-19" wide with 1" taper, or 20" wide with 2" taper | Used on 16-17" wide with 0" taper, 18-19" wide with 1" taper, or 20" wide with 2" taper |
$208.43
|
EA |
|
| 1d, 2f, 3 - 5 | 117525 | Angle Adjustable Footrest Assembly 18-19" wide, Rogue2- Used on 18-19" wide with 0" taper or 20" wide with 1" taper | Used on 18-19" wide with 0" taper or 20" wide with 1" taper |
$208.43
|
EA |
|
| 1e, 2f, 3 - 5 | 117526 | Angle Adjustable Footrest Assembly 20" wide, Rogue2- used on 20" wide with 0" taper | used on 20" wide with 0" taper |
$360.55
|
EA |
|
| 1h, 2a, 3 - 5 | 117527 | Angle Adjustable Footrest Assembly 12-13" wide, 3.5V Front, Standard, Rogue2- Used on 12" Wide with 8-14" seat to footrest lengths or 13" Wide with 16.5-19.5" seat to footrest lengths | Used on 12" Wide with 8-14" seat to footrest lengths or 13" Wide with 16.5-19.5" seat to footrest lengths |
$142.66
|
EA |
|
| 1i, 2a, 3 - 5 | 122901 | Angle Adjustable Footrest Assembly 12-13" wide, 3.5V Front, Extended, Rogue2- Used on 12" Wide with 8-14" seat to footrest lengths or 13" Wide with 16.5-19.5" seat to footrest lengths | Used on 12" Wide with 8-14" seat to footrest lengths or 13" Wide with 16.5-19.5" seat to footrest lengths |
$142.66
|
EA |
|
| 1j, 2a, 3 - 5 | 117528 | Angle Adjustable Footrest Assembly 12" wide, 3.5V Front, Short, Rogue2- Used on 12" Wide with 8-13.5" seat to footrest lengths | Used on 12" Wide with 8-13.5" seat to footrest lengths |
$142.66
|
EA |
|
| 1h, 2b, 3 - 5 | 117529 | Angle Adjustable Footrest Assembly 13-14" wide, 3.5V Front, Standard, Rogue2- Used on 13" widths with 8.5-16" seat to footrest lengths or 14" widths with 18-19.5" seat to footrest lengths | Used on 13" widths with 8.5-16" seat to footrest lengths or 14" widths with 18-19.5" seat to footrest lengths |
$128.60
|
EA |
|
| 1i, 2b, 3 - 5 | 122902 | Angle Adjustable Footrest Assembly 13-14" wide, 3.5V Front, Extended, Rogue2- Used on 13" widths with 16.5"-19.5" or 14" widths with 18-19.5" seat to footrest lengths | Used on 13" widths with 16.5"-19.5" or 14" widths with 18-19.5" seat to footrest lengths |
$150.82
|
EA |
|
| 1j, 2b, 3 - 5 | 117530 | Angle Adjustable Footrest Assembly 13" wide, 3.5V Front, Short, Rogue2- Used on 13" widths with 8.5-13.5" seat to footrest lengths | Used on 13" widths with 8.5-13.5" seat to footrest lengths |
$128.60
|
EA |
|
| 1h, 2c, 3 - 5 | 117531 | Angle Adjustable Footrest Assembly 13-15" wide, 3.5V Front, Standard, Rogue2- Used on 13" widths with 8" seat to footrest lengths, 14" widths with 10-17.5" seat to footrest lengths or 15" wide with 19.5" seat to footrest lengths | Used on 13" widths with 8" seat to footrest lengths, 14" widths with 10-17.5" seat to footrest lengths or 15" wide with 19.5" seat to footrest lengths |
$150.82
|
EA |
|
| 1i, 2c, 3 - 5 | 122903 | Angle Adjustable Footrest Assembly 14-15" wide, 3.5V Front, Extended, Rogue2- Used on 14" widths with 11-17.5" seat to footrest lengths or 15" wide with 19.5" seat to footrest lengths | Used on 14" widths with 11-17.5" seat to footrest lengths or 15" wide with 19.5" seat to footrest lengths |
$128.60
|
EA |
|
| 1j, 2c, 3 - 5 | 117532 | Angle Adjustable Footrest Assembly 13-14" wide, 3.5V Front, Short, Rogue2- Used on 13" widths with 8" seat to footrest lenghts 14" widths with 10-13.5" seat to footrest lengths. | Used on 13" widths with 8" seat to footrest lenghts 14" widths with 10-13.5" seat to footrest lengths. |
$150.82
|
EA |
|
| 1h, 2d, 3 - 5 | 117533 | Angle Adjustable Footrest Assembly 14-15" wide, 3.5V Front, Standard, Rogue2- Used on 14" widths with 8-9.5" seat to footrest lengths or 15" widths with 11.5-19" seat to footrest lengths. | Used on 14" widths with 8-9.5" seat to footrest lengths or 15" widths with 11.5-19" seat to footrest lengths. |
$128.60
|
EA |
|
| 1i, 2d, 3 - 5 | 122904 | Angle Adjustable Footrest Assembly 15" wide, 3.5V Front, Extended, Rogue2- 15" widths and 11.5-19" seat to footrest lengths | 15" widths and 11.5-19" seat to footrest lengths |
$158.99
|
EA |
|
| 1j, 2d, 3 - 5 | 117534 | Angle Adjustable Footrest Assembly 14-15" wide, 3.5V Front, Short, Rogue2- Used on 14" widths with 8-9.5" seat to footrest length or 15" widths with 11.5-13.5" seat to footrest lengths. | Used on 14" widths with 8-9.5" seat to footrest length or 15" widths with 11.5-13.5" seat to footrest lengths. |
$128.60
|
EA |
|
| 1h, 2e, 3 - 5 | 117535 | Angle Adjustable Footrest Assembly 15-16" wide, 3.5V Front, Standard, Rogue2- Used on 15" widths with 8-11" seat to footrest lengths or 16" widths with 16.5-19.5" seat to footrest lengths. | Used on 15" widths with 8-11" seat to footrest lengths or 16" widths with 16.5-19.5" seat to footrest lengths. |
$158.99
|
EA |
|
| 1i, 2e, 3 - 5 | 122905 | Angle Adjustable Footrest Assembly 15-16" wide, 3.5V Front, Extended, Rogue2- Used on 15" widths with 8-11" seat to footrest lengths or 16" widths with 8-19.5" seat to footrest lengths | Used on 15" widths with 8-11" seat to footrest lengths or 16" widths with 8-19.5" seat to footrest lengths |
$158.99
|
EA |
|
| 1j, 2e, 3 - 5 | 117536 | Angle Adjustable Footrest Assembly 15" wide, 3.5V Front, Short, Rogue2- Used on 15" widths with an 11" seat to footrest length | Used on 15" widths with an 11" seat to footrest length |
$158.99
|
EA |
|
| 1i, 2f, 3 - 5 | 117537 | Angle Adjustable Footrest Assembly 17-20" wide, 3.5V Front, Extended, Rogue2 |
$166.28
|
EA |
|
|
| 1f, 2b, 3 - 5 | 117541 | Angle Adjustable Footrest Assembly 16" wide, 7V Front, Standard, Rogue2- Used 16" widths with 18-19.5" seat to footrest length | Used 16" widths with 18-19.5" seat to footrest length |
$135.19
|
EA |
|
| 1g, 2b, 3 - 5 | 122906 | Angle Adjustable Footrest Assembly 16" wide, 7V Front, Extended, Rogue2- Used 16" widths with 18-19.5" seat to footrest length | Used 16" widths with 18-19.5" seat to footrest length |
$135.19
|
EA |
|
| 1f, 2c, 3 - 5 | 117543 | Angle Adjustable Footrest Assembly 16" wide, 7V Front, Standard, Rogue2- Used on 16" widths with 16.5-17.5" seat to footrest length | Used on 16" widths with 16.5-17.5" seat to footrest length |
$157.41
|
EA |
|
| 1g, 2c, 3 - 5 | 122907 | Angle Adjustable Footrest Assembly 16-17" wide, 7V Front, Extended, Rogue2- Used on 16" widths with 14-17.5" seat to footrest length or 17" widths with 18-19.5" seat to footrest lengths | Used on 16" widths with 14-17.5" seat to footrest length or 17" widths with 18-19.5" seat to footrest lengths |
$157.41
|
EA |
|
| 1g, 2d, 3 - 5 | 117545 | Angle Adjustable Footrest Assembly 15-16" wide, 7V Front, Extended, Rogue2- Used on 16" widths with 10-13.5" seat to footrest length, 17" widths with 14-17.5" seat to footrest lengths, or 18" widths with 18-19.5" | Used on 16" widths with 10-13.5" seat to footrest length, 17" widths with 14-17.5" seat to footrest lengths, or 18" widths with 18-19.5" |
$135.19
|
EA |
|
| 1g, 2e, 3 - 5 | 117547 | Angle Adjustable Footrest Assembly 16-20" wide, 7V Front, Extended, Rogue2- Used on 16" widths with 8-9.5" seat to footrest lengths, 17" widths with 8-13.5" seat to foortrest lengths, or 18" widths with 10-17.5" seat to footrest lengths, 19" widths with seat to footrest lengths 14-19.5", or 20" widths with 18"-19.5" seat to footrest lengths | Used on 16" widths with 8-9.5" seat to footrest lengths, 17" widths with 8-13.5" seat to foortrest lengths, or 18" widths with 10-17.5" seat to footrest lengths, 19" widths with seat to footrest lengths 14-19.5", or 20" widths with 18"-19.5" seat to footrest lengths |
$165.58
|
EA |
|
| 1g, 2f, 3 - 5 | 117549 | Angle Adjustable Footrest Assembly 18-20" wide, 7V Front, Extended, Rogue2- Used on 18" widths with 8-9.5" seat to footrest lengths, 19" widths with 8-13.5" seat to foortrest lengths, or 20" widths with 8-17.5" seat to footrest lengths. | Used on 18" widths with 8-9.5" seat to footrest lengths, 19" widths with 8-13.5" seat to foortrest lengths, or 20" widths with 8-17.5" seat to footrest lengths. |
$172.87
|
EA |
|
| 6, 7 | 501739 | Footrest Protector w/ Instructions Kit Left Rigid |
$15.30
|
EA |
|
|
| 6, 7 | 501740 | Footrest Protector w/ Instructions Kit Right Rigid |
$15.30
|
EA |
|
|
| 6, 7 | 501741 | Footrest Protector w/ Instructions Kit PAIR Rigid |
$30.60
|
EA |
|
|
| 1a | 000221 | Footrest Tube Angle Adjustable 5.6" Rigid- used on 12-13" wide with 0" taper, 12-15" wide with 1" taper, and 14-17" wide with 2" taper | used on 12-13" wide with 0" taper, 12-15" wide with 1" taper, and 14-17" wide with 2" taper |
$27.84
|
|
|
| 1b | 000222 | Footrest Tube Angle Adjustable 6.6" Rigid- used on 14-15" wide with 0" taper, 16-17" wide with 1" taper, and 18-19" wide with 2" taper | used on 14-15" wide with 0" taper, 16-17" wide with 1" taper, and 18-19" wide with 2" taper |
$27.84
|
|
|
| 1c | 000223 | Footrest Tube Angle Adjustable 7.6" Rigid- used on 16-17" wide with 0" taper, 18-19" wide with 1" taper, and 20" wide with 2" taper | used on 16-17" wide with 0" taper, 18-19" wide with 1" taper, and 20" wide with 2" taper |
$27.84
|
|
|
| 1d | 000224 | Footrest Tube Angle Adjustable 8.6" Rigid- used on 18-19" wide with 0" taper, 20" wide with 1" taper | used on 18-19" wide with 0" taper, 20" wide with 1" taper |
$27.84
|
|
|
| 1e | 000625 | Footrest Tube Angle Adjustable 10.6" Rigid- used on 20" wide with 0" taper | used on 20" wide with 0" taper |
$103.90
|
|
|
| 1f | 004118 | V7 Front Footrest Tube Standard |
$10.56
|
|
||
| 1g | 120804 | V7 Footrest Tube, Extended |
$10.56
|
|
||
| 1h | 113195 | V3.5 Front Footrest Tube Standard |
$6.76
|
|
||
| 1i | 120805 | V3.5 Footrest Tube Extended |
$6.76
|
|
||
| 1j | 113252 | V Front Footrest Tube 3.5 Degree, Short |
$6.76
|
|
||
| 2a | 000225 | Footrest Platform Angle Adjustable 6" |
$89.76
|
EA |
|
|
| 2b | 001322 | Footrest Platform Angle Adjustable 7" |
$75.70
|
EA |
|
|
| 2c | 000226 | Footrest Platform Angle Adjustable 8" |
$97.92
|
EA |
|
|
| 2d | 001323 | Footrest Platform Angle Adjustable 9" |
$75.70
|
EA |
|
|
| 2e | 000227 | Footrest Platform Angle Adjustable 10" |
$106.09
|
EA |
|
|
| 2f | 001319 | Footrest Platform Angle Adjustable 12" |
$113.38
|
EA |
|
|
| 3 | 100789 | Footrest Adjustable Clamp 5" |
$33.37
|
EA |
|
|
| 4 | 100662 | M6 x 25 FSHCS BLK ZC |
$1.81
|
|
||
| 5 | 100658 | M6 Nylock Nut Blk Zn |
$1.19
|
EA |
|
