Q6 Edge Z - Jd6

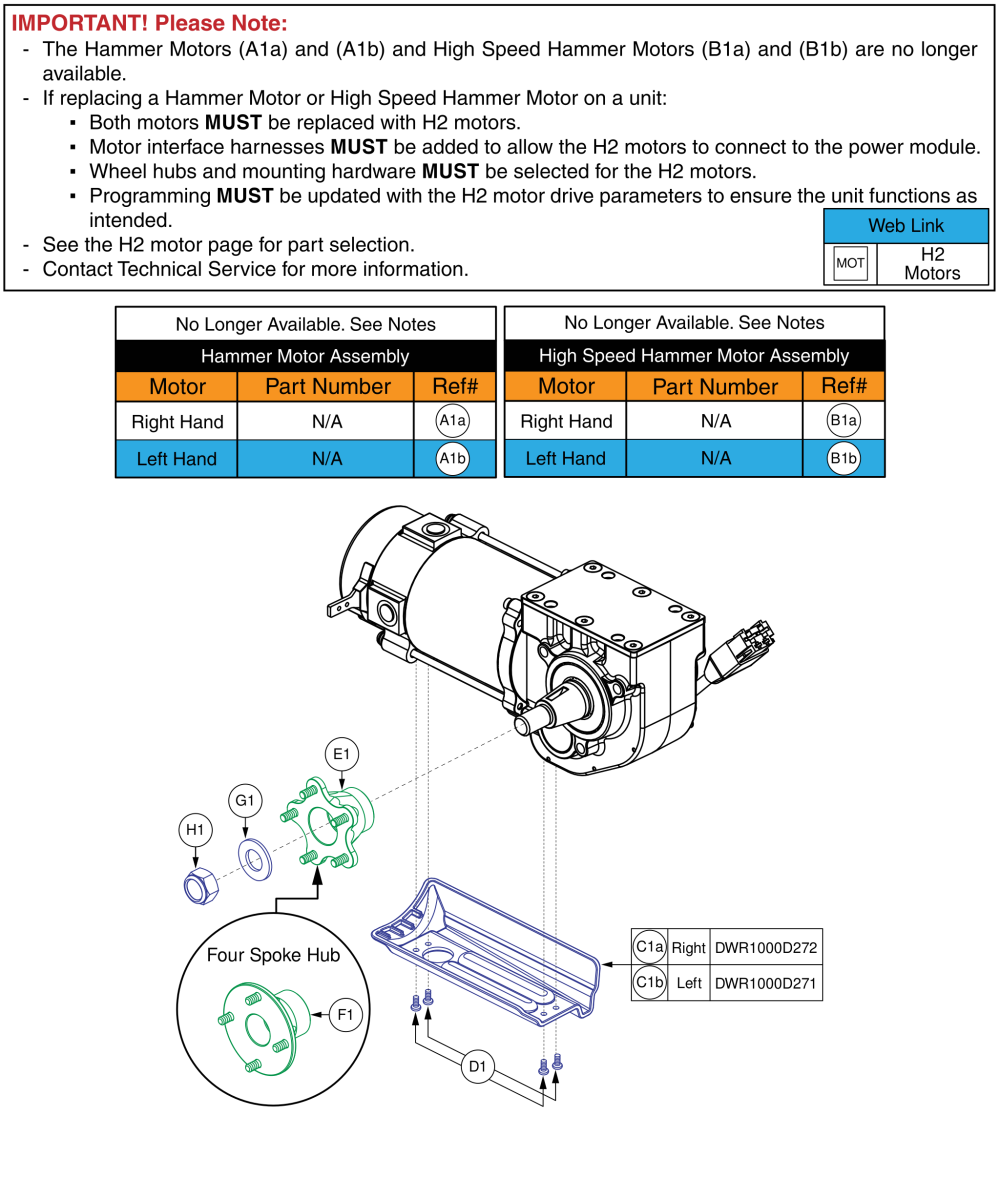

Name: Q6 Edge Z - JD6: Drive Motor - Hammer & High Speed Hammer, Q6 Edge Z / Q6 Ultra
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1a |
$123.00
|
EA |
|
|||
| A1b |
$123.00
|
EA |
|
|||
| B1a |
$123.00
|
EA |
|
|||
| B1b |
$123.00
|
EA |
|
|||
| C1a | DWR1000D272 | COVER, MOTOR CABLE GUARD, RIGHT, D-1000-272 |
$10.80
|
EA |
|
|
| C1b | DWR1000D271 | COVER, MOTOR CABLE GUARD, LEFT, D-1000-271 |
$10.80
|
EA |
|
|
| D1 | SCRPPH1036 | SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ |
$3.20
|
EA |
|
|
| E1 | WHLASMB1644 | WHEEL, ASSY, HUB, 5 SPOKE, W/STUDS, HAMMER MOTORS, B-1059-025 |
$53.70
|
EA |
|
|
| F1 | WHLASMB2149 | WHEEL, ASSY, HUB, 4 SPOKE, W/STUDS, HAMMER MOTORS, C-1203-027 |
$48.80
|
EA |
|
|
| G1 | WASSTND1141 | WASHER, FLAT, BLACK ZINC, STEEL, 0.668" ID X 1.262" OD X 0.101" TH |
$3.90
|
EA |
|
|
| H1 | NUTNYLK1091 | NUT, HEX, LOCK, .625-18, ASME B16.6.3, BZ, PVTP |
$3.20
|
EA |
|
|
| MOT |
$123.00
|
EA |
|
