Synergy® Seating

Name: Synergy® Seating: Q-logic 2 Harnesses And Hardware - Synergy
Manufacturer: Pride Mobility

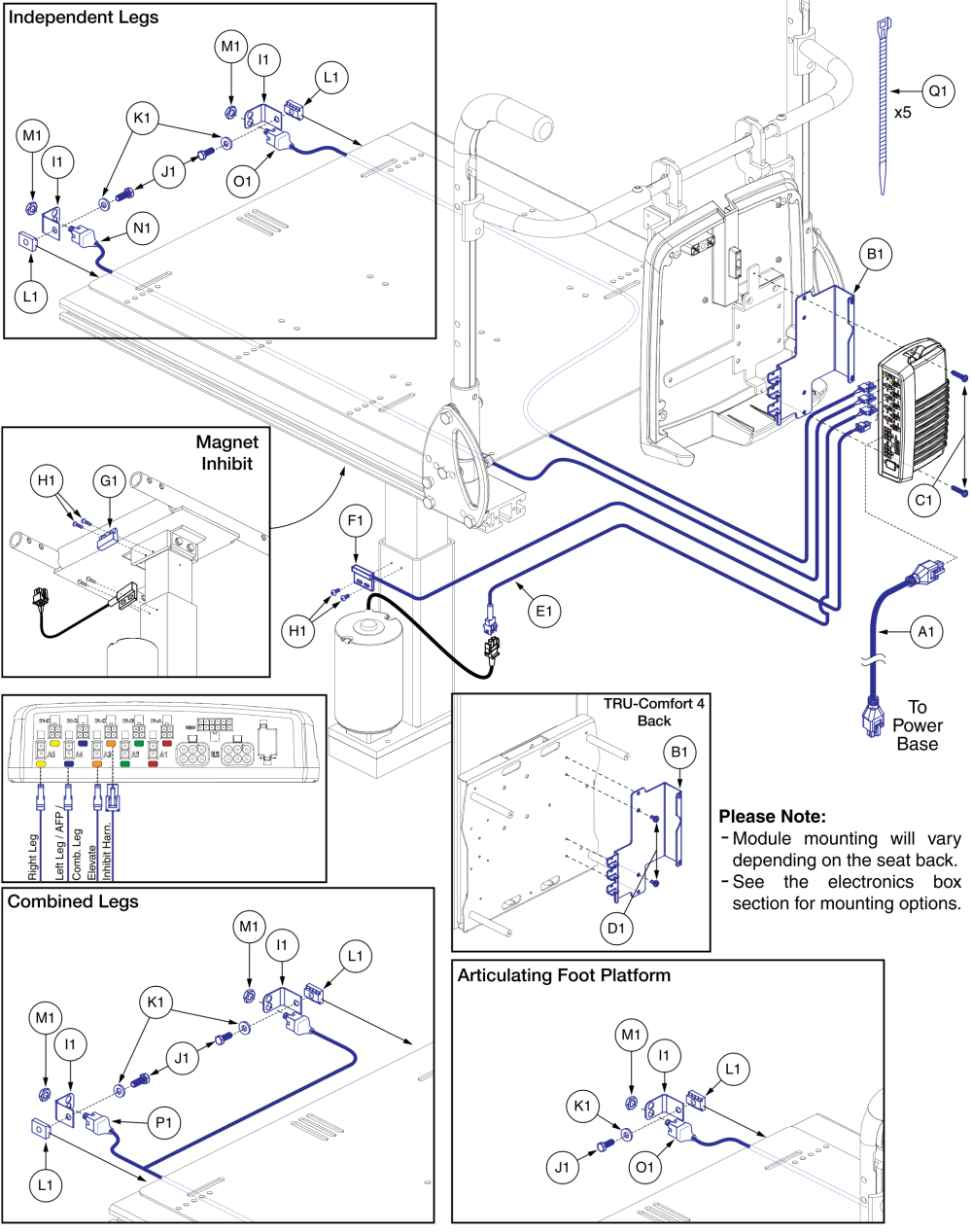

Q-logic 2 Harnesses And Hardware - Synergy parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 DWR1111H047 HARNESS, BUS CABLE, 1.0 METER, FEMALE/FEMALE, H-1111-047, (CURTIS: 17881302-01)
$168.10
EA
B1 MEC138556 BRACKET, STRAIN RELIEF, AAM
$28.80
EA
C1 SCRPPH1153 SCREW, PAN HEAD, TYPE H, M4X0.7 X 20, FT, ISO 7045, CL 4.8, BZ
$3.20
EA
D1 SCRPPH1036 SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ
$3.20
EA
E1 DWR1265H017 ELECTRONIC, HARNESS, POWER SEAT, TRU-BALANCE TILT 2, H-1265-017
$22.80
EA
F1 DWR1265H016 ELECTRONIC, HARNESS, POWER SEAT INHIBIT, CURTIS, TRU-BALANCE TILT 2, H-1265-016
$104.60
EA
G1 SWTMAGN1001 ELECTRONIC, SWITCH, HERMETIC, PRX +8100
$17.00
EA
H1 SCRPTH1008 SCREW, TRUSS HEAD, 4 (.112)-40 X .25, ASME B18.6.3, TYPE I, STL, BZ
$3.20
EA
I1 DWR1303B026 ELECTRICAL CONNECTION BRACKET, ARTICULATING LEGREST, B-1303-026
$16.00
EA
J1 SCRHHCS1382 SCREW, HEX HEAD, M8X1.25 X 12, ISO 4014, CL 10.9, BZ
$3.20
EA
K1 WASSTND1002 WASHER, FLAT, TYPE A, .312 N X .688 OD X .065 THK, ASTM F844, BZ
$3.20
EA
L1 NUT8120005 NUT, T-SLOT, BLACK, M8-1.25
$5.80
EA
M1 NUTJAM1032 NUT, JAM, THIN, STAINLESS STEEL, 3/8-32
$3.20
EA
N1 DWR1265H006 ELECTRONIC, HARNESS, INDEPENDENT ELR, CURTIS, TRU-BALANCE TILT 2, LEFT, H-1265-006
$37.80
EA
O1 DWR1265H007 ELECTRONIC, HARNESS, INDEPENDENT ELR, CURTIS, TRU-BALANCE TILT 2, RIGHT, H-1265-007
$37.80
EA
P1 DWR1265H005 ELECTRONIC, HARNESS, COMBINED ELR, CURTIS, TRU-BALANCE TILT 2, H-1265-005
$83.50
EA
Q1 PLSTIE1004 TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2
$3.20
EA
