Rogue Alx (formerly Tsunami)

Name: Rogue ALX (Formerly Tsunami): (discontinued) Rogue Alx Backrest Mount And Hardware - Growth (formerly Tsunami)
Manufacturer: Ki Mobility

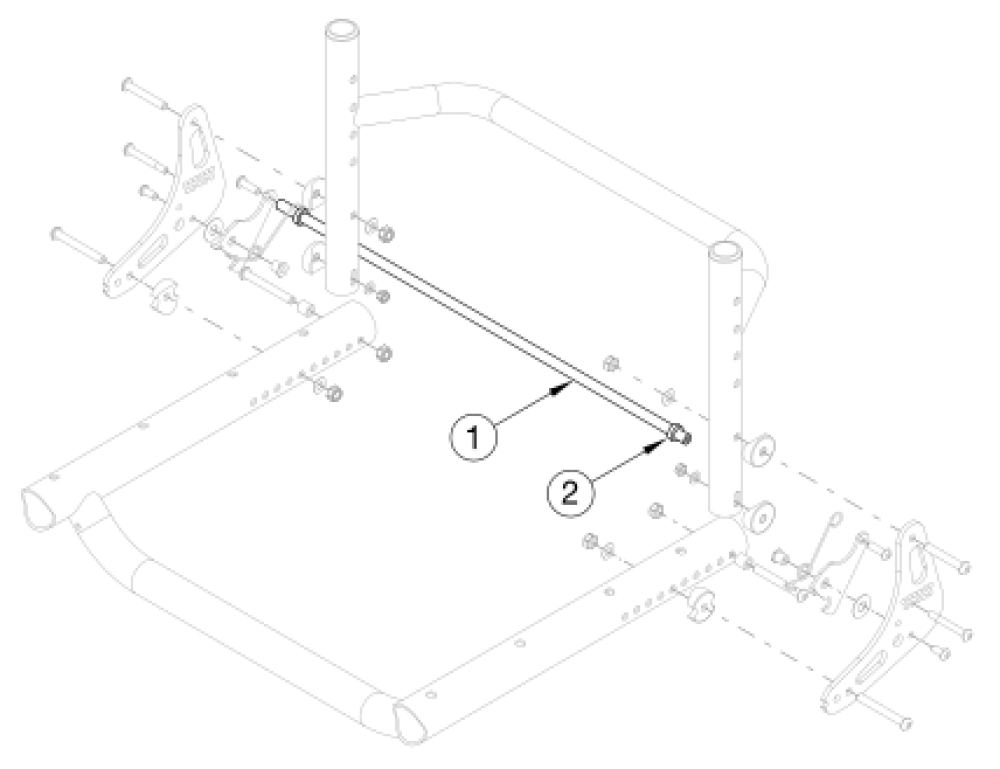

(discontinued) Rogue Alx Backrest Mount And Hardware - Growth (formerly Tsunami) parts diagram
(Click on image to enlarge)

Utilize this page if chair has Locking Fold Down Back (Rogue10 Style). Backrest Release Bar based on seat width. This Tsunami Backrest Mount and Hardware is only used with the Tsunami Style Backrest.
Pos. Part # Description Price UOM Buy
1a, 2 503347 Backrest Release Bar with Retainers 14"
$21.11
EA
1b, 2 503348 Backrest Release Bar with Retainers 15"
$21.11
EA
1c, 2 503349 Backrest Release Bar with Retainers 16"
$21.11
EA
1d, 2 503350 Backrest Release Bar with Retainers 17"
$21.11
EA
1e, 2 503351 Backrest Release Bar with Retainers 18"
$21.11
EA
1f, 2 503352 Backrest Release Bar with Retainers 19"
$21.11
EA
1g, 2 503353 Backrest Release Bar with Retainers 20"
$26.84
EA
1h, 2 503354 Backrest Release Bar with Retainers 21"
$26.84
EA
1i, 2 503355 Backrest Release Bar with Retainers 22"
$26.84
EA
