Little Wave Arc
Name: Little Wave Arc: Arc Plastic Coated Handrim
Manufacturer: Ki Mobility
(Click on image to enlarge)
Manufacturer: Ki Mobility

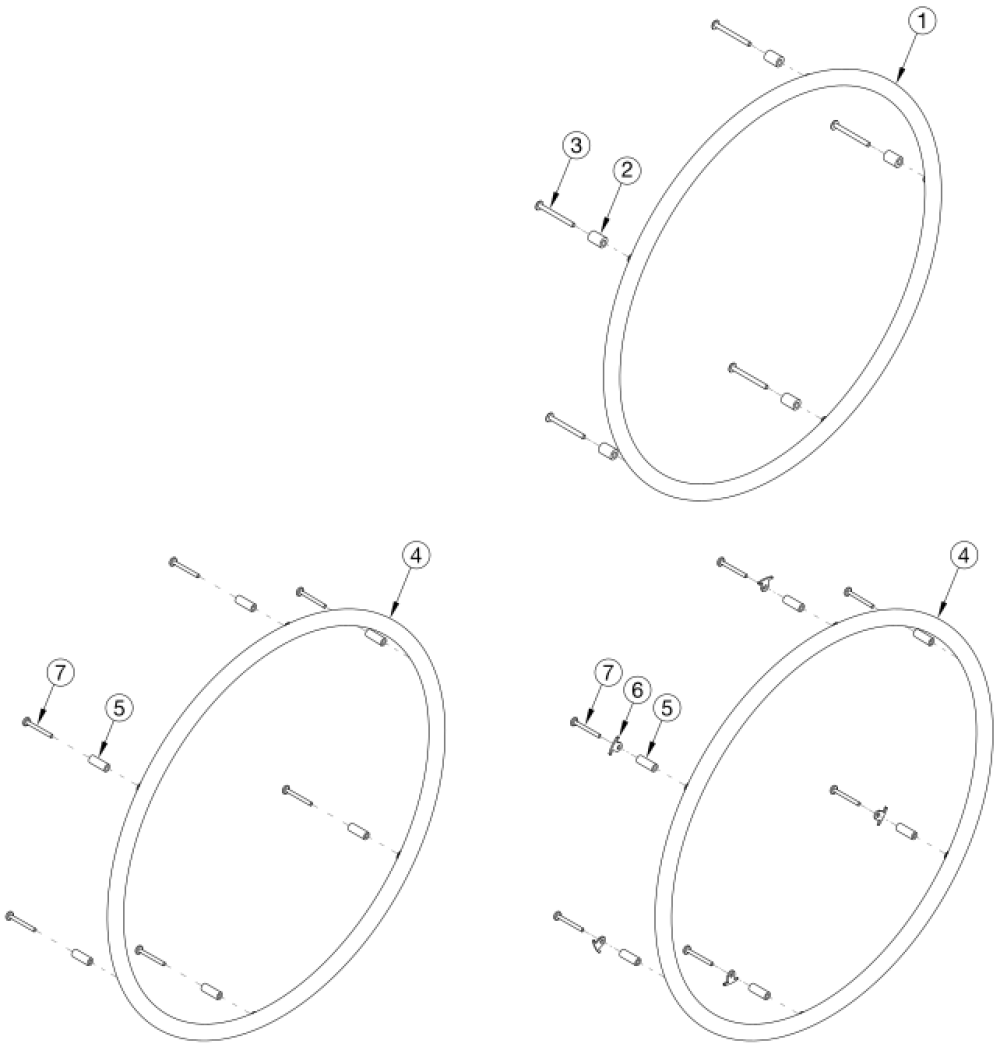

Part Picture
(Click on image to enlarge)
Handrim Hardware ChartFor more information see Handrim Hardware Chart. Quantity in Handrim Hardware Kits are for one wheel.
Attachments:
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 5a, 6, 7a | 502168 | Handrim Hardware Kit, 6 Rivet Nut, EACH- Used with Ki Spoke and MAXX Spoke wheels with standard handrim mount option | Used with Ki Spoke and MAXX Spoke wheels with standard handrim mount option |
$41.16
|
EA |
|
| 5b, 6, 7b | 113069 | Handrim Hardware Kit, Close Mount, 6 Rivet Nut, EACH- Used with Ki Spoke and MAXX Spoke wheels with close mount handrim mount option | Used with Ki Spoke and MAXX Spoke wheels with close mount handrim mount option |
$57.69
|
EA |
|
| 5c, 7c | 117377 | Handrim Hardware Kit, Standard Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with standard handrim mount option | Used with MAXX Mag wheels with standard handrim mount option |
$34.80
|
EA |
|
| 5b, 7a | 117378 | Handrim Hardware Kit, Close Mount, MAXX Mag, EACH- Used with MAXX Mag wheels with close mount handrim mount option | Used with MAXX Mag wheels with close mount handrim mount option |
$40.36
|
EA |
|
| 4 | 112819 | Handrim Plastic Coated 6 Rivet Nut 20"- Used on 20" Ki Spoke, 20" MAXX Spoke, and 20" MAXX Mag wheels. Replaced 200542. | Used on 20" Ki Spoke, 20" MAXX Spoke, and 20" MAXX Mag wheels. Replaced 200542. |
$162.78
|
EA |
|
| 2a, 3a | 502173 | Handrim Hardware Kit, 5 Rivet Nut, Plastic Coated, EACH- Used with X Core Mag wheels with standard handrim mount option | Used with X Core Mag wheels with standard handrim mount option |
$35.28
|
EA |
|
| 2b, 3b | 113070 | Handrim Hardware Kit, Close Mount, 5 Rivet Nut, EACH- Used with X Core Mag wheels with close mount handrim mount option | Used with X Core Mag wheels with close mount handrim mount option |
$28.82
|
EA |
|
| 1 | 101963 | Handrim Plastic Coated 5 Rivet Nut 20"- Used on 20" 5-Spoke X Core Mag wheels | Used on 20" 5-Spoke X Core Mag wheels |
$150.00
|
EA |
|
| 2a | 101756 | Handrim Spacer Plastic Coated Rivet- Used with X Core Mag with standard handrim mount option | Used with X Core Mag with standard handrim mount option |
$0.60
|
|
|
| 3a | 100724 | M5 x 55 PH TRS HD M/S ZC- Used with X Core Mag with standard handrim mount option | Used with X Core Mag with standard handrim mount option |
$1.17
|
|
|
| 5a | 100653 | Handrim Spacer Spoke- Used with Ki Spoke and MAXX Spoke with standard handrim mount option | Used with Ki Spoke and MAXX Spoke with standard handrim mount option |
$1.17
|
|
|
| 5c | 100629 | Handrim Spacer Alum Ano Riv- Used with MAXX Mag wheels with standard handrim mount option | Used with MAXX Mag wheels with standard handrim mount option |
$1.23
|
EA |
|
| 6 | 100698 | Handrim Tab- Used with Ki Spoke and MAXX Spoke wheels | Used with Ki Spoke and MAXX Spoke wheels |
$4.45
|
|
|
| 7a | 100654 | M5 x 40 DIN7985 PH Pan HD M/S ZC- Used with Ki Spoke and MAXX Spoke with standard handrim mount option | Used with Ki Spoke and MAXX Spoke with standard handrim mount option |
$1.77
|
|
|
| 7c | 103545 | M5 x 50 DIN7985 PH PAN HD M/S BLK ZC- Used with MAXX Mag wheels with standard handrim mount option | Used with MAXX Mag wheels with standard handrim mount option |
$4.56
|
|
