Gogo Elite Traveller Plus - S53/s54 - Sb8, Sc7, Sd2, Sd3

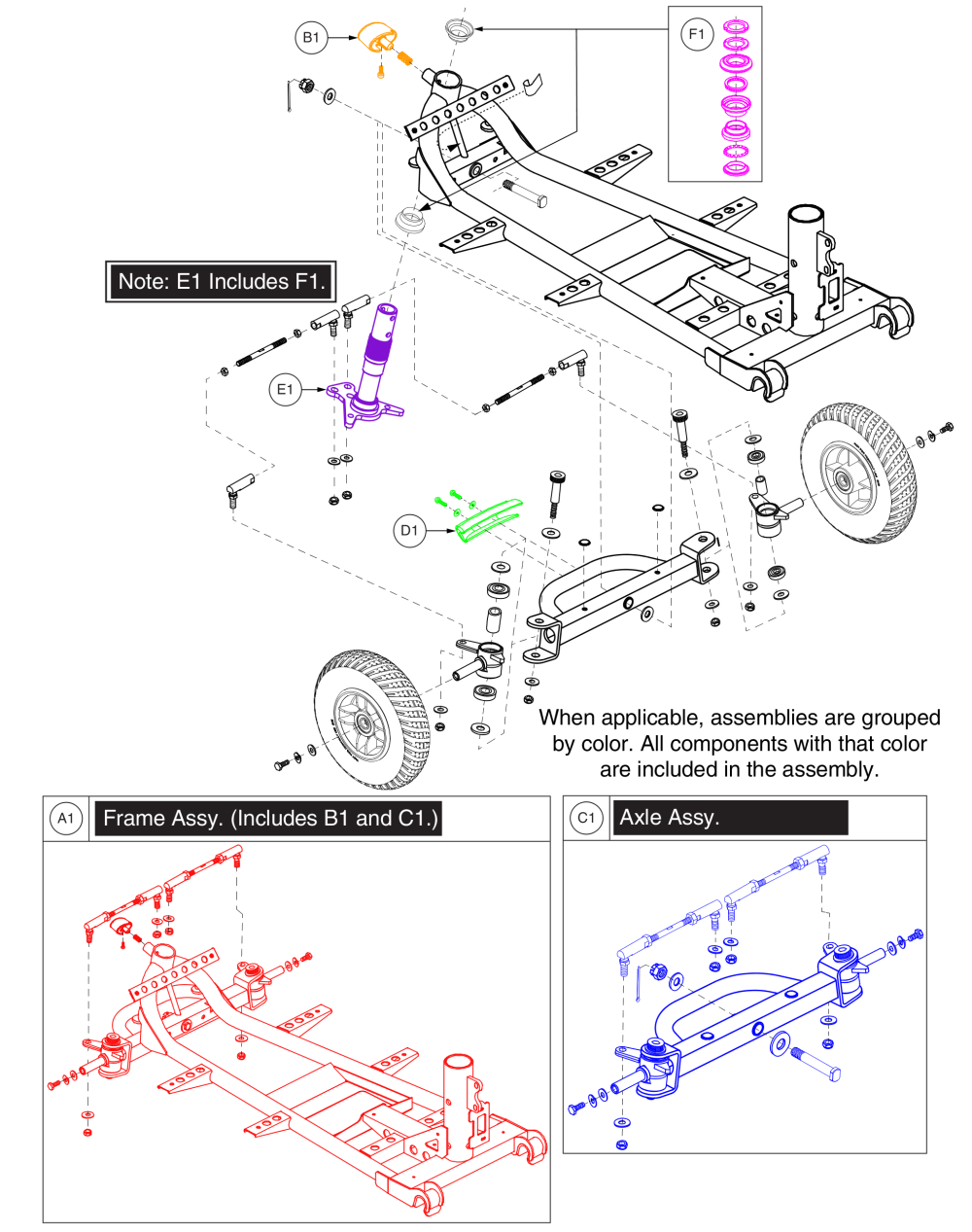

Name: GoGo Elite Traveller Plus - S53/S54 - SB8, SC7, SD2, SD3: Front Frame W/ Axle, Bumpers & Bearings, 4 Wheel, Gogo Elite Traveller Plus
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | FRMASMB9849 | FRAME, ASSY, FRONT, 4 WHEEL, SC54 |
$426.40
|
EA |
|
|
| B1 | MEC1703628 | TILLER LOCK KNOB ASSEMBLY |
$11.60
|
EA |
|
|
| C1 | FRMASMB9850 | AXLE, ASSY, FRONT, 4 WHEEL, SC54 |
$101.10
|
EA |
|
|
| D1 | FRMASMB9240 | BUMPER, ASSY, FRONT, BLACK, SC44E |
$4.40
|
EA |
|
|
| E1 | FRMASMB9238 | STEERING STEM, ASSY, 4 WHEEL, SC44E |
$74.40
|
EA |
|
|
| F1 | HDWASMB1000 | KIT, BEARING/RACE |
$41.10
|
EA |
|
