loadingLoading... GoGo Elite Traveller - S40E/S44E - S80, S81, SB5, SB6

Gogo Elite Traveller - S40e/s44e - S80, S81, Sb5, Sb6

Name: GoGo Elite Traveller - S40E/S44E - S80, S81, SB5, SB6: Console W/delta Tiller, With Delta Tiller (model Numbers Ending 1019 & Subsequent)
Manufacturer: Pride Mobility

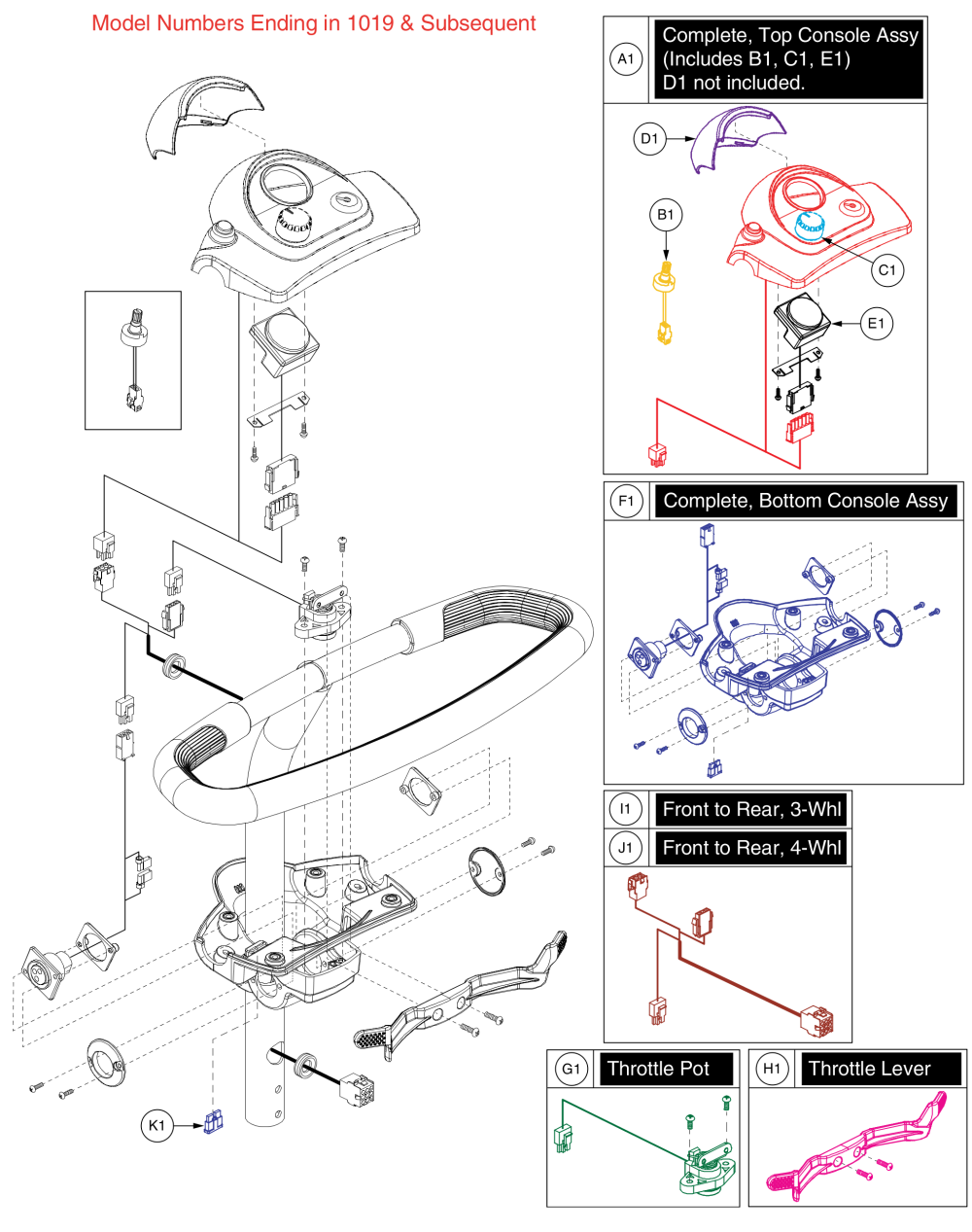

Console W/delta Tiller, With Delta Tiller (model Numbers Ending 1019 & Subsequent) parts diagram
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1 ELEASMB7235 ELECTRONIC, ASSY, TOP CONSOLE, H-9983-038
$99.10
EA
B1 DWR1020H161 ELECTRONIC, SPEED POT W/HARNESS, CTS, 100K, H-1020-161
$28.40
EA
C1 DWR9983B030 KNOB, GRAY, PLASTIC, SPEED POT, B-9983-030
$24.80
EA
D1 SHDASMB6244 SHROUD, ASSY, TILLER SHIELD, RED, S40E/44E
$9.20
EA
E1 ELE1906793 NT AMBIENT VOLTMETER ASSEMBLY WITH PLASTICS
$53.50
EA
F1 SHDASMB6193 SHROUD, ASSY, CONSOLE BOTTOM, BLACK, GO-GO ES
$45.10
EA
G1 ELEASMB7342 ELECTRONIC, ASSY, THROTTLE POT, GO-GO ES
$92.60
EA
H1 MEC1801206 LEVER, ASSY, THROTTLE CONTROL, GO-GO DELTA TILLER
$3.90
EA
I1 DWR9983H040 ELECTRONIC, HARNESS, FRONT-TO-REAR, XLR CONSOLE, SC40E, H-9983-040
$55.80
EA
J1 DWR9983H041 ELECTRONIC, HARNESS, FRONT-TO-REAR, XLR CONSOLE, SC44E, H-9983-041
$55.30
EA
K1 ELEFUSE1013 ELECTRONIC, FUSE, 5 AMP, ATO (AUTOMOTIVE TYPE), (LITTELFUSE: 257005)
$3.20
EA
