Gogo Sport - S73/s74 - Sg2, Sg4

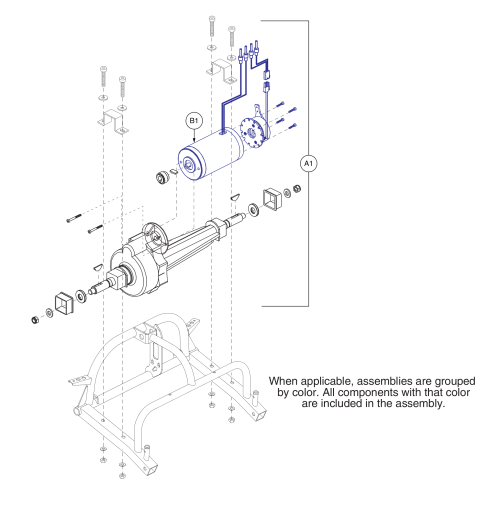

Name: GoGo Sport - S73/S74 - SG2, SG4: Drive Assembly, Gogo Sport / Elite Traveller Plus
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

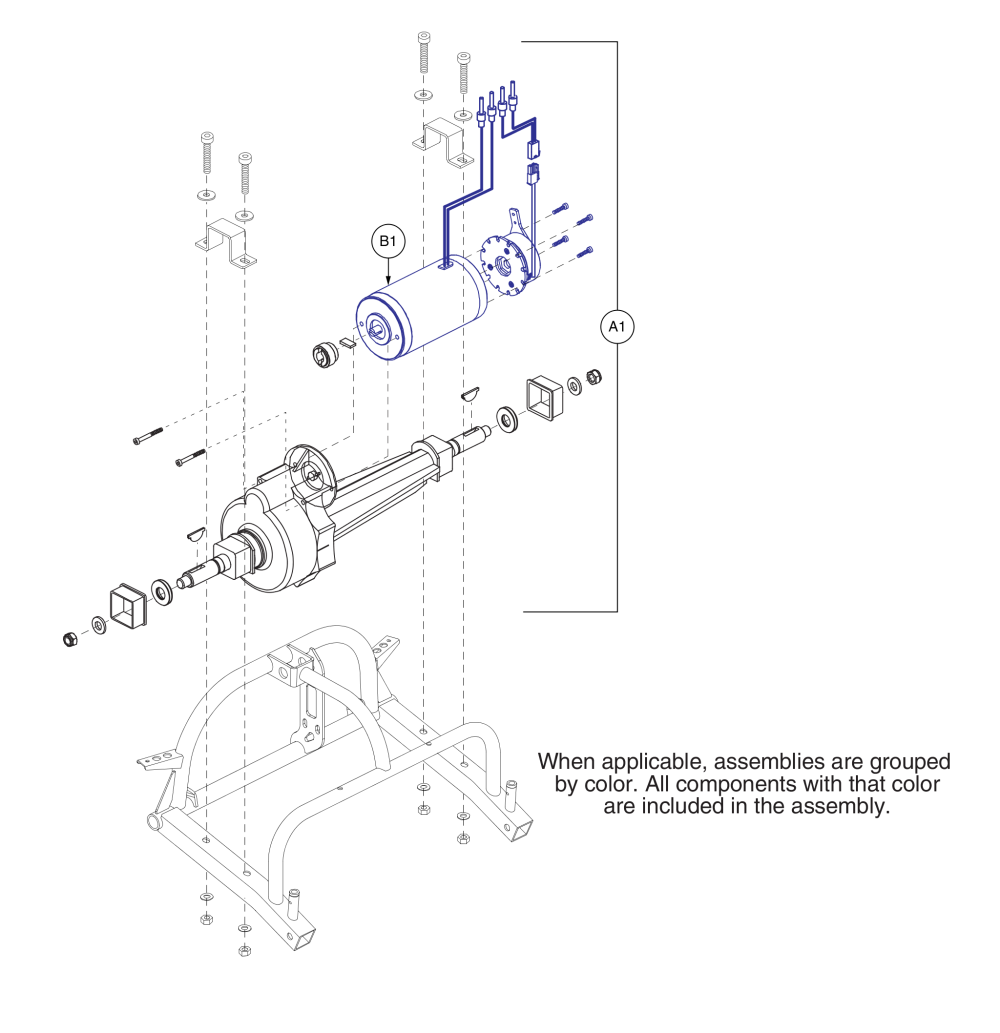

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | DRVASMB2066 | MOTOR, ASSY, MAIN TRANSAXLE/MOTOR/BRAKE, W/POWER CONNECTOR, SC53/SC54, E-1211-015, (FEISHEN: FS250) |
$783.90
|
EA |
|
|
| B1 | DRVASMB2093 | BRAKE, ASSY, W/POWER CONNECTOR AND MOTOR, FEISHEN, SC53/SC54 |
$574.60
|
EA |
|
