Jazzy Elite 14 - Jc9
Name: Jazzy Elite 14 - JC9: Seat Tower Assy, Elite 14
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility

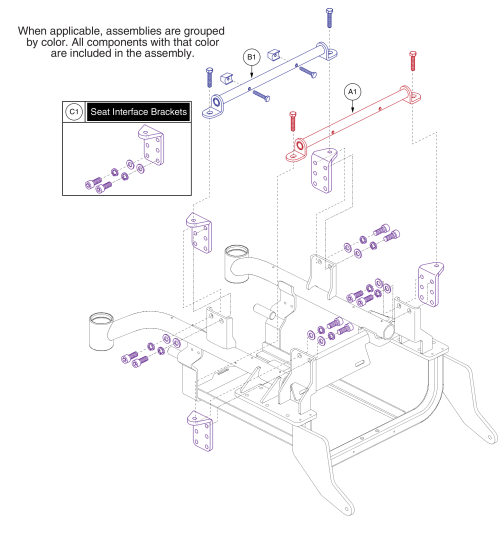

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | TWRASMB7120002 | SEAT TOWER, ASSY, 14.00" CENTERS, FRONT TRAPEZE BAR, METRIC |
$71.70
|
EA |
|
|
| B1 | TWRASMB7120003 | SEAT TOWER, ASSY, 14.00" CENTERS, REAR TRAPEZE BAR, METRIC |
$130.70
|
EA |
|
|
| C1 | BRKASMB7110030 | SEAT INTERFACE, ASSY, L-BRACKET, UNIVERSAL, METRIC, BRKASMB7110030 |
$53.50
|
EA |
|
