Manual Front Riggings Ipb

Name: Manual Front Riggings IPB: 80° Style #7 Swing-away Upper
Manufacturer: Pride Mobility

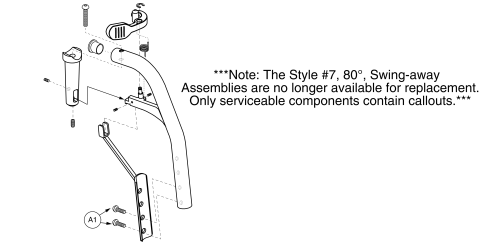

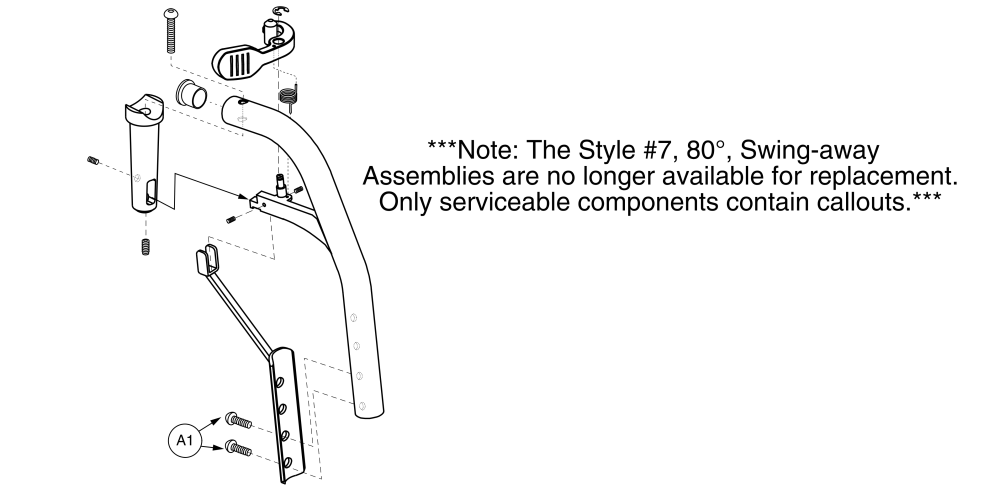

80° Style #7 Swing-away Upper parts diagram

(Click on image to enlarge)

Pos.	Part #	Description	Remarks	Price	UOM	Buy
A1	SCRASBH1022	SCREW, BHSCS, BLACK ZINC, 5/16-18 X 0.750'', GRADE 5		$3.20	EA
