Name: Pursuit Sport - MV714 - SH3: Tiller Assy, Pursuit Sport - Mv714
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)

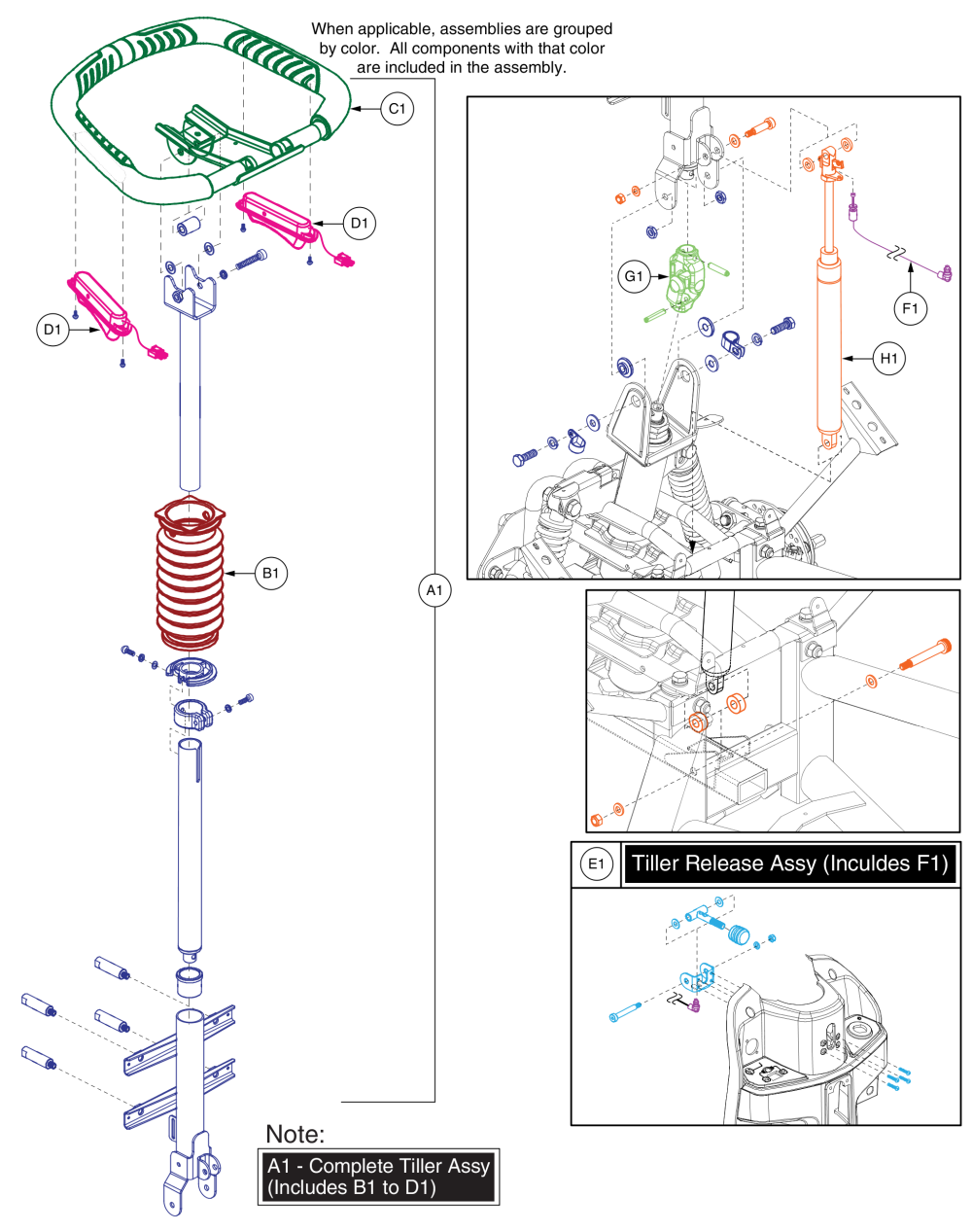

| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | MEC141252 | TILLER, ASSY, MV714 |
$522.80
|
EA |
|
|
| B1 | DWR9761D003 | TILLER, BOOT, BLACK, NBR, S614, D-9761-003 |
$50.80
|
EA |
|
|
| C1 | DWR9761D029 | FRAME, TILLER, STEERING WHEEL OVERMOLD, S614, D-9761-029 |
$62.70
|
EA |
|
|
| D1 | DWR9761H001 | ELECTRONIC, HARNESS, THROTTLE POT, CTS, TRIGGER, H-9761-001 |
$119.70
|
EA |
|
|
| E1 | MEC142295 | TILLER, RELEASE ASSY, MV714 |
$34.70
|
EA |
|
|
| F1 | DWR9761B012 | TILLER, ASSY, RELEASE CABLE, S614, B-9761-012 |
$7.90
|
EA |
|
|
| G1 |
$308.00
|
EA |
|
|||
| H1 | MEC141253 | TILLER, GAS SPRING ASSY, MV714 |
$185.70
|
EA |
|
