loadingLoading... Q6 Edge X - JB6

Q6 Edge X - Jb6

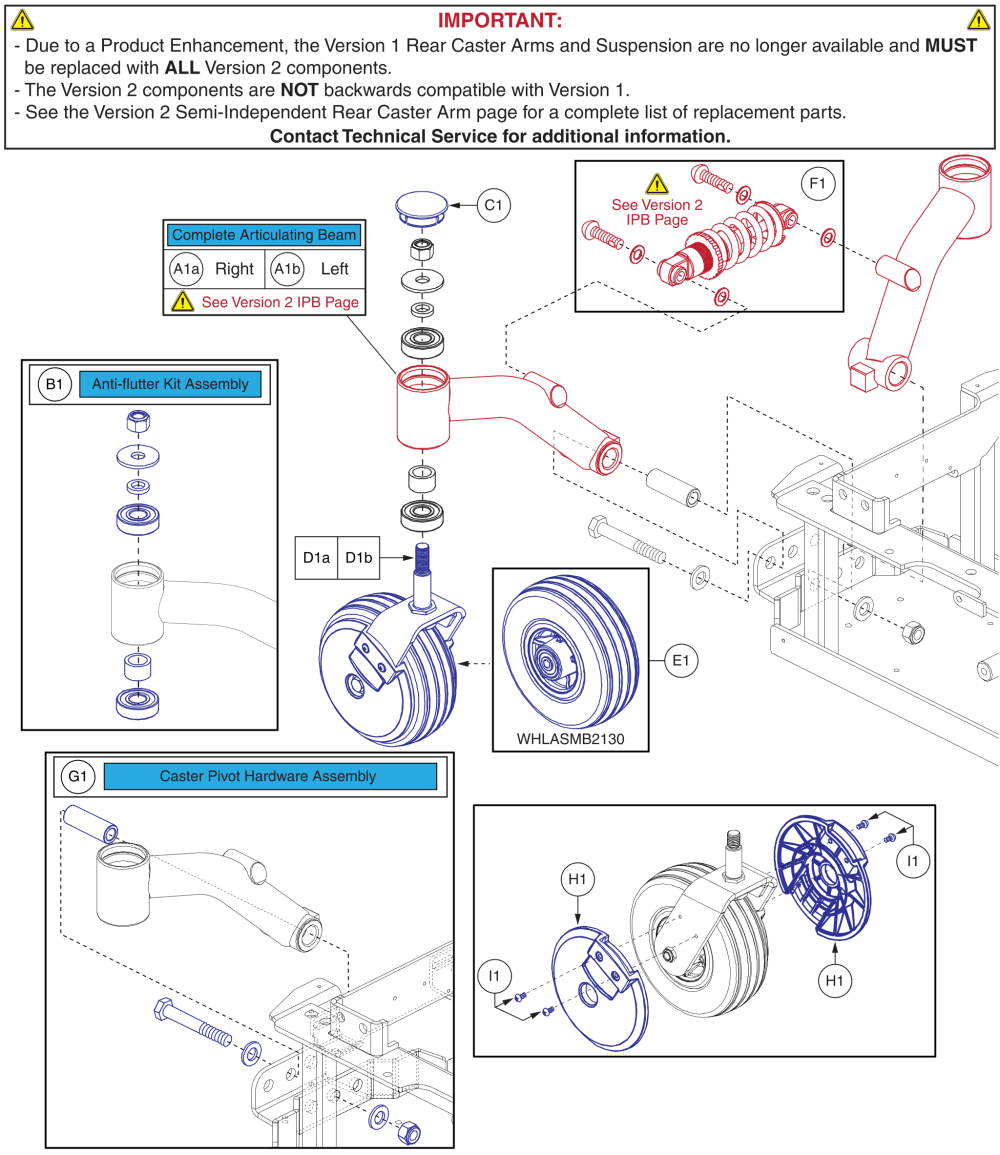

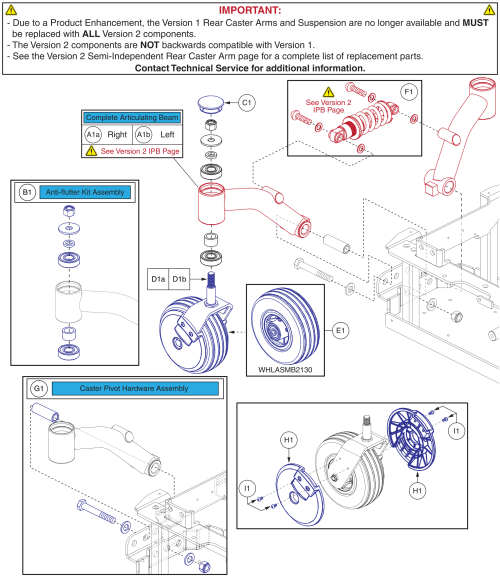

Name: Q6 Edge X - JB6: Rear Caster Assy - Semi-ind. Suspension, Ver. 1, 6" Caster, Q6 Edge X
Manufacturer: Pride Mobility
Rear Caster Assy - Semi-ind. Suspension, Ver. 1, 6
(Click on image to enlarge)

Pos. Part # Description Price UOM Buy
A1a FRMASMB16042 ARTICULATING BEAM, ASSY, SEMI-INDEPENDENT SUSPENSION, W/6" CASTER WHEELS, RIGHT, QUANTUM623, E-1062-072 ***Replaced with Version 2*** N/A EA Please Call
A1b FRMASMB16041 ARTICULATING BEAM, ASSY, SEMI-INDEPENDENT SUSPENSION, W/6" CASTER WHEELS, LEFT, QUANTUM623, E-1062-069 ***Replaced with Version 2*** N/A EA Please Call
B1 HDWASMB1187 ANTI-FLUTTER KIT, REAR CASTER, Q6EDGE, C-1062-077
$55.90
EA
C1 DWR1065C008 SHROUD, COVER, CAP, CASTER, BLACK
$3.20
EA
D1a FRMASMB16285 CASTER, ASSY, LOW IMPACT, BLACK RIM/GRAY TIRE, 6" WHEEL, W/FORK & COVERS, RIGHT, W/RADIUS, D-1202-048
$104.40
EA
D1b FRMASMB16284 CASTER, ASSY, LOW IMPACT, BLACK RIM/GRAY TIRE, 6" WHEEL, W/FORK & COVERS, LEFT, W/RADIUS, D-1202-047
$103.80
EA
E1 WHLASMB2130 WHEEL, ASSY, LOW IMPACT, BLACK RIM/GRAY TIRE, 6" X 2", W/BEARINGS & SPACER, E-1202-039
$107.10
EA
F1 FRMASMB16043 SUSPENSION, ASSY, STRUT, FRONT, Q6EDGE, D-1062-070 ***Replaced with Version 2*** N/A EA Please Call
G1 HDWASMB1170 PIVOT HARDWARE SUB-ASSEMBLY
$21.30
EA
H1 DWR1202D044 COVER, CASTER SPHERE, BLACK, 6" WHEEL, THIN, LOW PROFILE, D- 1202-044
$16.40
EA
I1 SCRPPH1036 SCREW, PAN HEAD, TYPE H, M4X0.7 X 8, FT, ISO 7045, CL 4.8, BZ
$3.20
EA
