Zt10 - S710zt - Sk3

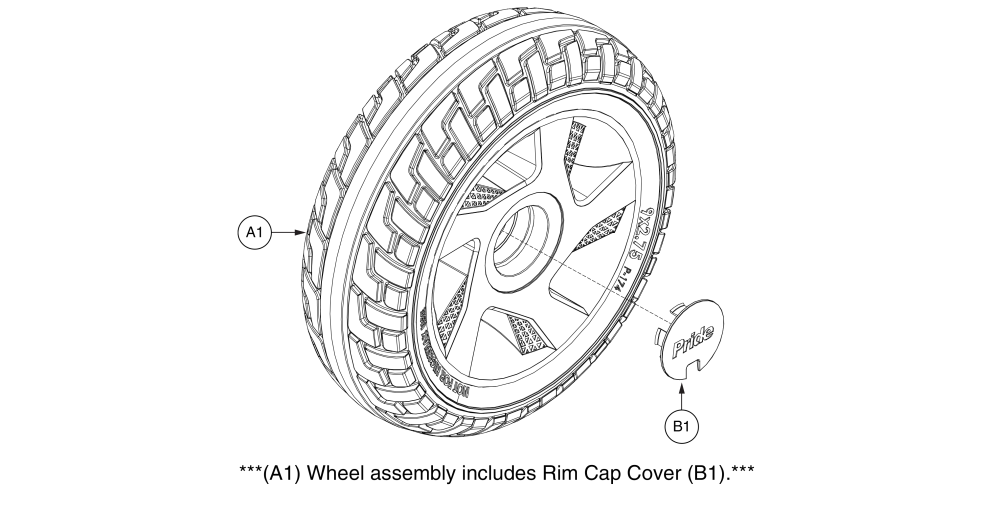

Name: ZT10 - S710ZT - SK3: Front Wheel
Manufacturer: Pride Mobility
(Click on image to enlarge)
Manufacturer: Pride Mobility
Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| A1 | WHL1800970 | WHEEL ASSEMBLY, 9-INCH, FRONT |
$133.60
|
EA |
|
|
| B1 | DGN1800971 | CAP, RIM |
$3.50
|
EA |
|
