Custom Seating
Name: Custom Seating: Snaptite Back Hardware (transit Approved)
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

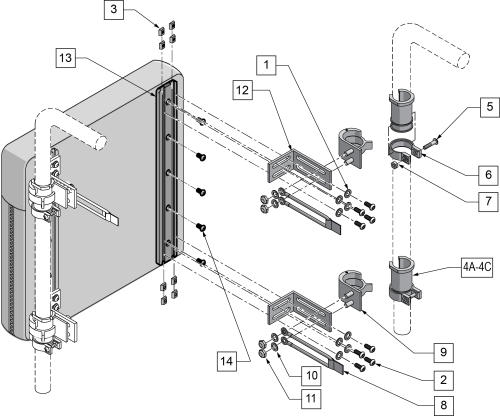

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 106943 | QU 1/4 AN WASHER FLAT |
$7.00
|
EA |
|
|
| 2 | 221090 | 1/4-28 x 3/8 BH C/S BLK |
$7.00
|
EA |
|
|
| 3 | 481106-QU | 1/4-28 CHANNEL NUT |
$7.00
|
EA |
|
|
| 4A | 474110 | SNAPTITE RECEIVER 3/4” |
$39.00
|
EA |
|
|
| 4B | 112514 | SNAPTITE RECEIVER 7/8” |
$39.00
|
EA |
|
|
| 4C | 112515 | SNAPTITE RECEIVER 1” |
$39.00
|
EA |
|
|
| 5 | 226024-QU | 10-32 x 7/8 BH C/S BLK |
$7.00
|
EA |
|
|
| 6 | 474113 | SNAPTITE REC COLLR CLAMP |
$18.00
|
EA |
|
|
| 7 | 200101-QU | 10-32 NYLOCK NUT THIN |
$7.00
|
EA |
|
|
| 8 | 474150-QU | RETAINING STRAP TRANS |
$21.00
|
EA |
|
|
| 9 | 112516 | ADJ SNAPTITE ASSM 1 1/8” |
$94.00
|
EA |
|
|
| 10 | 455031-QU | #10 AN WASHER .032 SS |
$4.00
|
EA |
|
|
| 11 | 106935 | NUT NYLOCK THIN 1/4-28 ROHS |
$9.00
|
EA |
|
|
| 12 | 450053 | BRACKET 1” DOUBLE SLOT 90° |
$24.00
|
EA |
|
|
| 13 | 550116 | HDWR MOUNTING CHANNEL 8" |
$39.00
|
EA |
|
|
| 13 | 550118 | HDWR MOUNTING CHANNEL 10" |
$39.00
|
EA |
|
|
| 13 | 550120 | HDWR MOUNTING CHANNEL 12" |
$39.00
|
EA |
|
|
| 13 | 550122 | HDWR MOUNTING CHANNEL 14" |
$39.00
|
EA |
|
|
| 13 | 550124 | HDWR MOUNTING CHANNEL 16" |
$39.00
|
EA |
|
|
| 13 | 550127 | HDWR MOUNTING CHANNEL 18" |
$39.00
|
EA |
|
|
| 13 | 550128 | HDWR MOUNTING CHANNEL 20" |
$39.00
|
EA |
|
|
| 13 | 550129 | HDWR MOUNTING CHANNEL 22" |
$39.00
|
EA |
|
|
| 13 | 550130 | HDWR MOUNTING CHANNEL 24" |
$36.00
|
EA |
|
|
| 14 | 221090 | 1/4-28 x 3/8 BH C/S BLK |
$7.00
|
EA |
|
|
| 14 | 221094 | 1/4-28 x 7/16 BH C/S BLK | N/A | EA | Please Call | |
| 1 - 3, 4A, 5 - 12 | 921430 | SNPTITE SEAT/HARDWARE 3/4”-1” BRKT |
$342.00
|
EA |
|
|
| 1 - 3, 4B, 5 - 12 | 921431 | SNPTITE SEAT/HARDWARE 7/8”-1” BRKT |
$342.00
|
EA |
|
|
| 1 - 3, 4C, 5 - 12 | 921432 | SNPTITE SEAT/HARDWARE 1”-1” BRKT |
$342.00
|
EA |
|
