Name: Custom Seating: Standard Snaptite Back Hardware (with Collars)
Manufacturer: Sunrise Medical
(Click on image to enlarge)
Manufacturer: Sunrise Medical

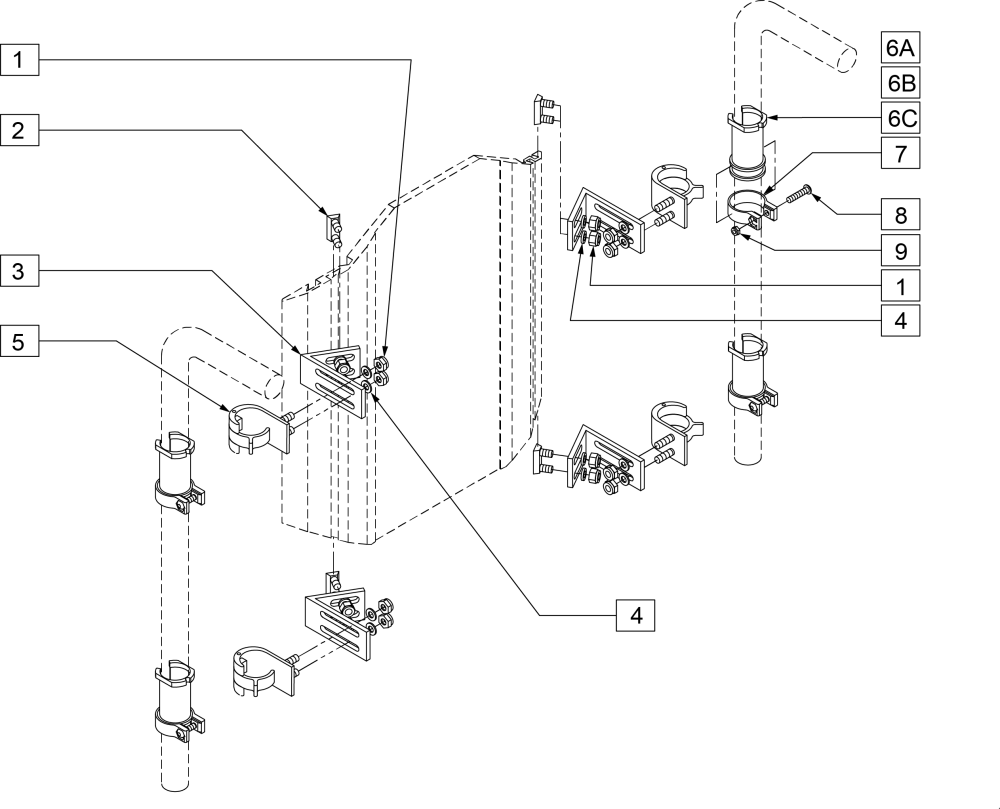

Part Picture
(Click on image to enlarge)
| Pos. | Part # | Description | Remarks | Price | UOM | Buy |
|---|---|---|---|---|---|---|
| 1 | 106935 | NUT NYLOCK THIN 1/4-28 |
$9.00
|
EA |
|
|
| 2 | 479002 | 1/4-28 DOVETAIL NUT W/SETSCREW |
$8.00
|
EA |
|
|
| 3 | 450050-QU | BRKT 1" DOUBLE SLOT 60D |
$21.00
|
EA |
|
|
| 4 | 106943 | WASHER FLAT AN 1/4 |
$7.00
|
EA |
|
|
| 5 | 474120 | ADJ.SNAPTITE ASSM 1 1/8"DIAM |
$39.00
|
EA |
|
|
| 6A | 474110 | SNAPTITE RECEIVER 3/4"DIAM |
$39.00
|
EA |
|
|
| 6B | 474111 | SNAPTITE RECEIVER 7/8" DIAM |
$32.00
|
EA |
|
|
| 6C | 474112 | SNAPTITE RECEIVER 1" DIAM |
$32.00
|
EA |
|
|
| 7 | 474113 | SNAPTITE RECEIV COLLAR CLAMP |
$18.00
|
EA |
|
|
| 8 | 226024-QU | 10-32 X 7/8 BH C/S BLK |
$7.00
|
EA |
|
|
| 9 | 200101-QU | 10-32 NYLOCK NUT THIN |
$7.00
|
EA |
|
|
| 1 - 5, 6A, 7 - 9 | 474305 | 3/4" SNAP W/COLLAR KIT AC |
$289.00
|
EA |
|
|
| 1 - 5, 6B, 7 - 9 | 474304 | 7/8" SNAP W/COLLAR KIT AC |
$289.00
|
EA |
|
|
| 1 - 5, 6C, 7 - 9 | 474303 | 1" SNAP W/COLLAR KIT AC |
$289.00
|
EA |
|
|
| 1 - 5, 6B, 6C, 7 - 9 | 474306 | 7/8"T/1"B SNAP W/COLLAR KIT AC- See note | See note |
$289.00
|
EA |
|
| 1 - 5, 6A, 6C, 7 - 9 | 474307 | 3/4"T/1"B SNAP W/COLLAR KIT AC- See note | See note |
$289.00
|
EA |
|
